Corrugated Flexible Metal

Corrugated Flexible Metal

  • Applications:
  • This hose is suitable for conveying all types of liquid and gases with extreme low and high temperature requirements. Corrugated Stainless Steel Braided Pressure Hose, to ISO 10380 specification.



  • Advantages
  • High physical strength with light weight.
  • A long usage life.
  • Good corrosion characteristics, resistance to fire, moisture, abrasion and penetration.
  • ISO 10380 means flexibility making it good for static installations or even where there is constant flexing in the application.
  • Absorbs vibration and noise from pumps, compressors, engines etc.
  • Compensates for thermal expansion  and contraction of piping.
  • Corrects problems of misalignment.
  • A flexible and quick alternative for rigid piping in difficult locations.



  • Features
  • Temperature Range:To 600°C or in cryogenics applications, to -200°C
  • Sizes: ID from 6mm to 250mm
  • Working Pressure: 140 bar @ 6mm ID to 9.6 bar @ 250mm ID



  • Hose Core
  • Stainless steel annular corrugated metallic flexible hoses are manufacturing in austantic steel ANSI 321, 316,316L & 304 grades conforming to BS 6501, Part-1.   The annular corrugated metallic hose body provided the flexibility and pressure tight core of the assembly.We also manufacture highly flexible close –pitch hoses for special applications.



  • Braid
  • When pressure is applied, unbraided hose tends to elongate axially; to restrain this, an external layer of SS wire braid is provided. The braid also makes the assembly pressure compatible.
  • Sometimes two or even three layers of braiding are provided for high pressure applications. The braiding is highly flexible and follows the movement of the hose. The braid is normally manufactured in SS 304 wire. However SS 316 and 321 braids can also be manufactured. We also supply wire braid in different configurations as per customer specifications.

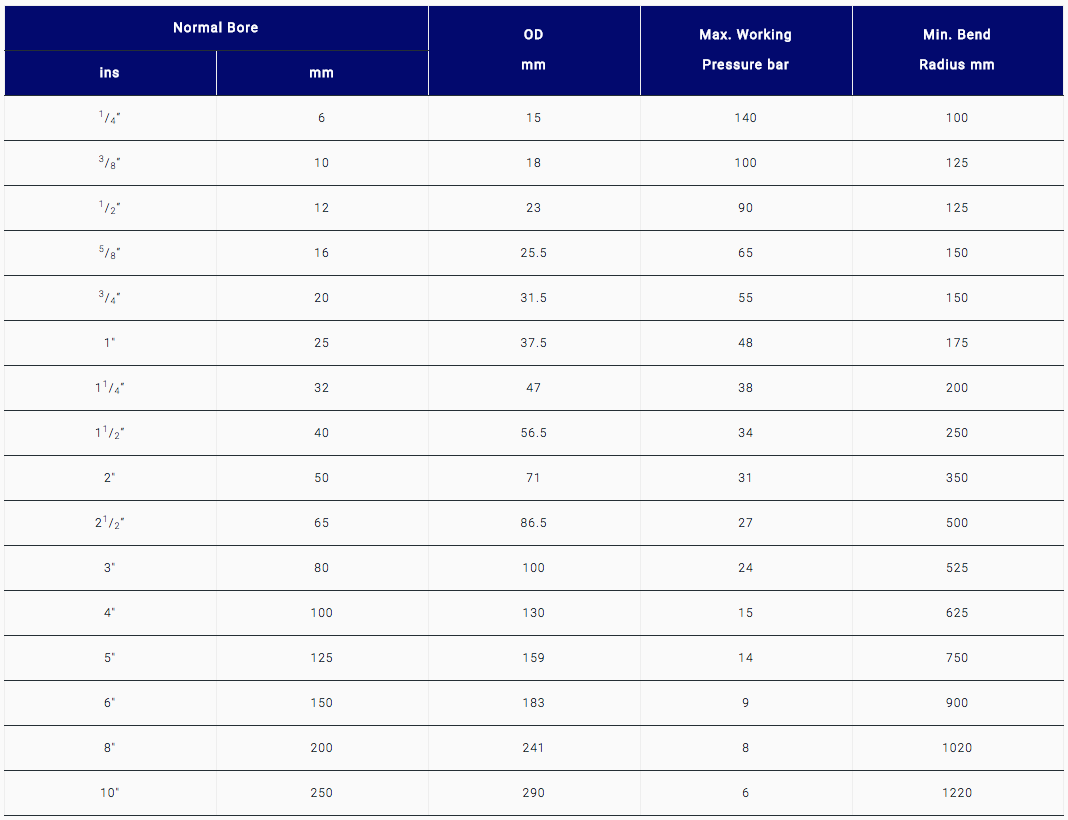

Normal Bore
OD
mm
Max. Working
Pressure bar
Min. Bend
Radius mm
ins
mm
1/4
6
15
140
100
3/8
10
18
100
125
1/2
12
23
90
125
5/8
16
25.5
65
150
3/4
20
31.5
55
150
1″
25
37.5
48
175
11/4
32
47
38
200
11/2
40
56.5
34
250
2″
50
71
31
350
21/2
65
86.5
27
500
3″
80
100
24
525
4″
100
130
15
625
5″
125
159
14
750
6″
150
183
9
900
8″
200
241
8
1020
10″
250
290
6
1220
