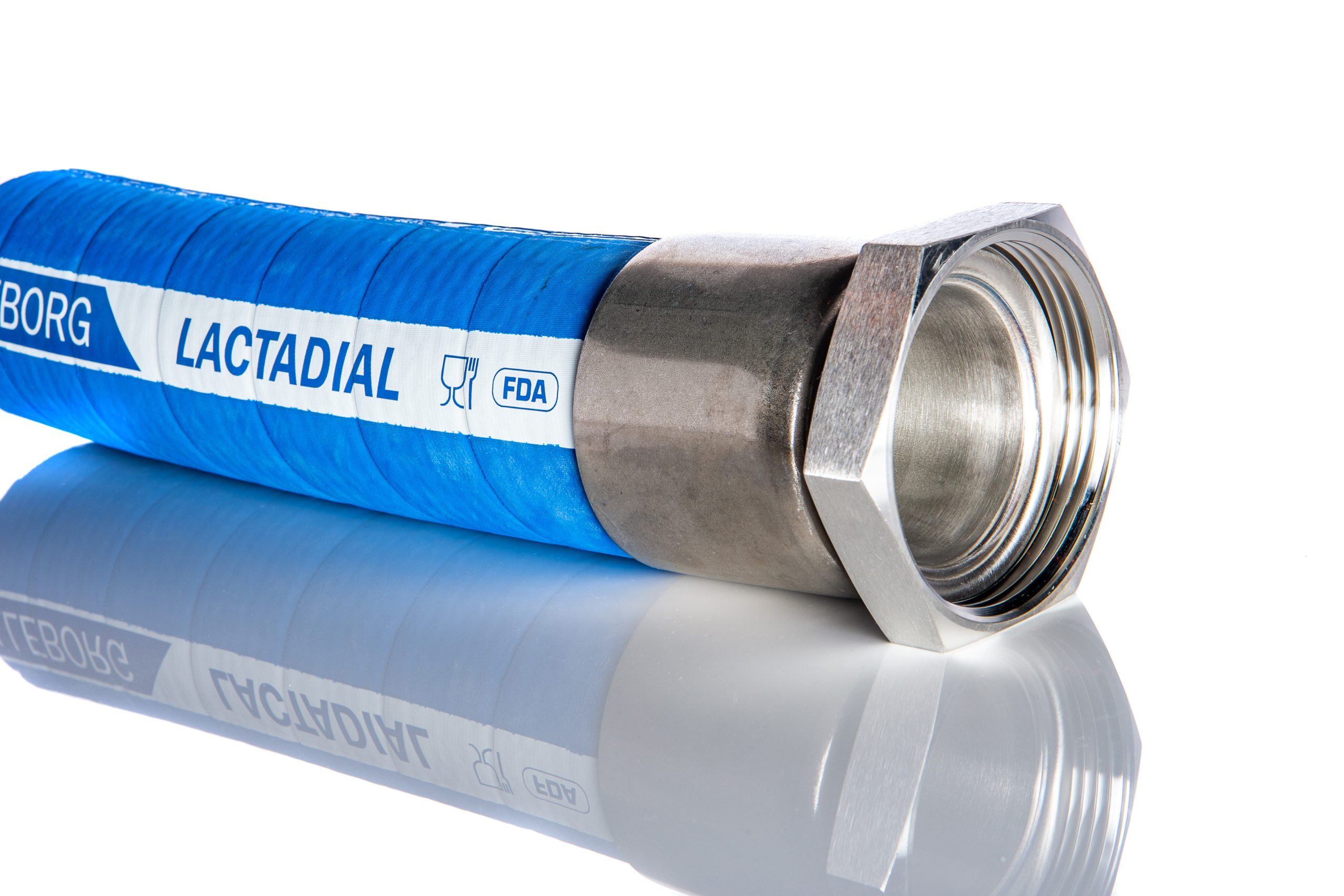

Lactadial Food and Drink Hose

Lactadial



  • For milk collection equipment
  • Extremely flexible and light for ease of handling
  • Recovers its shape despite accidental ‘squeeze’
  • Smooth seamless white tube that does not propagate bacterial growth and complies with the most stringent European and USA regulations
  • Unaffected by changes in temperature
  • Resistant to cleaning with detergents or steam to max temp of 110°C
  • Non-marking abrasion resistant cover
  • Contains no Phthalate
  • Inner Tube:Food grade NR, white, smooth
  • Reinforcement:Synthetic textile with embedded steel helix
  • Cover:Weather and abrasion resistant NR, blue
  • Temperature Range:-30°C to +80°C
  • Sizes: From minimum ID of 51.0mm/ OD of 64.5mm to maximum ID of 76.0mm/OD of 91.5mm
  • Working Pressure: 6 bar
  • Bursting Pressure: 18 bar
  • Standard Approval:EU regulation no. 1935/2004 FDA regulation no. 21 CFR 177.2600

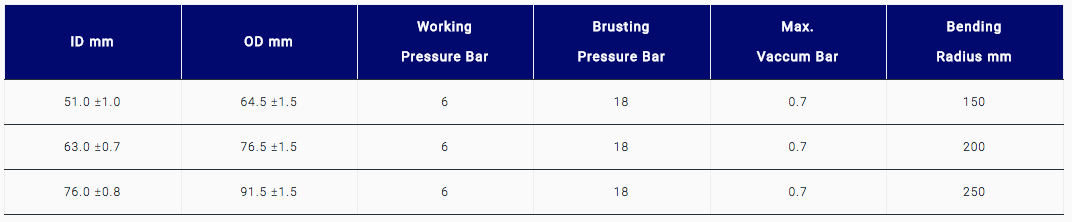

ID mm
OD mm
Working
Pressure Bar
Brusting
Pressure Bar
Max.
Vaccum Bar
Bending
Radius mm
51.0 ±1.0
64.5 ±1.5
6
18
0.7
150
63.0 ±0.7
76.5 ±1.5
6
18
0.7
200
76.0 ±0.8
91.5 ±1.5
6
18
0.7
250
