Description
|

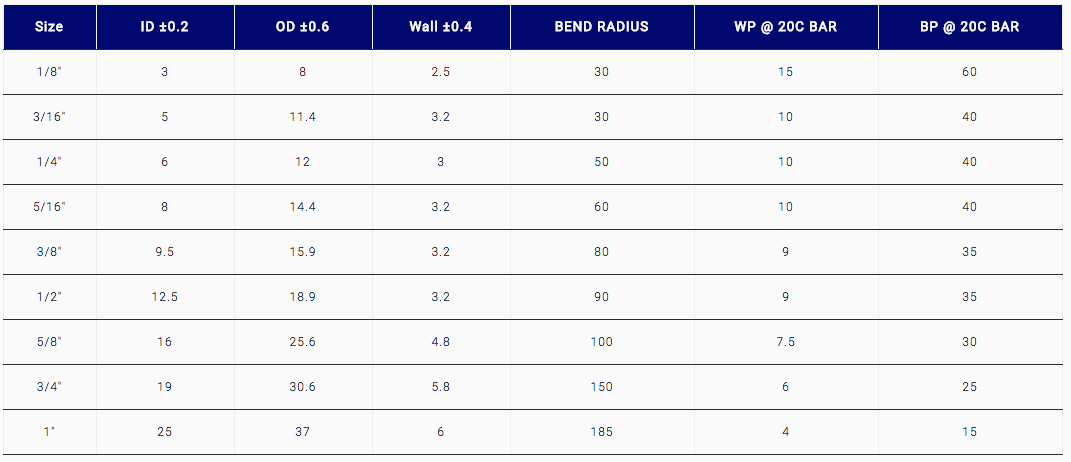

Size
|
ID ±0.2
|
OD ±0.6
|
Wall ±0.4
|
BEND RADIUS
|
WP @ 20C BAR
|
BP @ 20C BAR
|
|
1/8″
|
3
|
8
|
2.5
|
30
|
15
|
60
|
|
3/16″
|
5
|
11.4
|
3.2
|
30
|
10
|
40
|
|
1/4″
|
6
|
12
|
3
|
50
|
10
|
40
|
|
5/16″
|
8
|
14.4
|
3.2
|
60
|
10
|
40
|
|
3/8″
|
9.5
|
15.9
|
3.2
|
80
|
9
|
35
|
|
1/2″
|
12.5
|
18.9
|
3.2
|
90
|
9
|
35
|
|
5/8″
|
16
|
25.6
|
4.8
|
100
|
7.5
|
30
|
|
3/4″
|
19
|
30.6
|
5.8
|
150
|
6
|
25
|
|
1″
|
25
|
37
|
6
|
185
|
4
|
15
|
Click image to open larger view.
