Red Steam Hose

17 Bar Steam Hose



  • Superheated steam applications for high pressure cleaning and sterilising, fire snuffing and pipe defrosting. Fully compliant with EN ISO 6134:2005 Type 2 Class A for high pressure superheated steam applications.
  • Red rubber steam hose suitable for a working pressure of 17 bar relating to a temperature of 208ºC
  • Mandrel built and multi-wire strand reinforcement
  • Features antistatic wires to enable conductivity when correctly assembled and pin pricked cover
  • Temperature Range:-40°C to +208°C
  • Standard Length: 40m
  • Construction:Lining, EPDM rubber Cover, cloth finish red CR Rubber

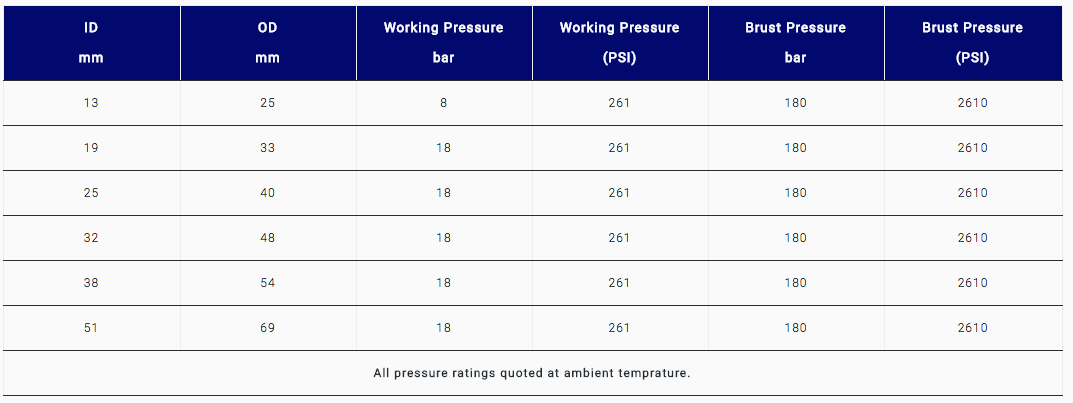

ID
mm
OD
mm
Working Pressure
bar
Working Pressure
(PSI)
Brust Pressure
bar
Brust Pressure
(PSI)
13
25
8
261
180
2610
19
33
18
261
180
2610
25
40
18
261
180
2610
32
48
18
261
180
2610
38
54
18
261
180
2610
51
69
18
261
180
2610
All pressure ratings quoted at ambient temprature.
