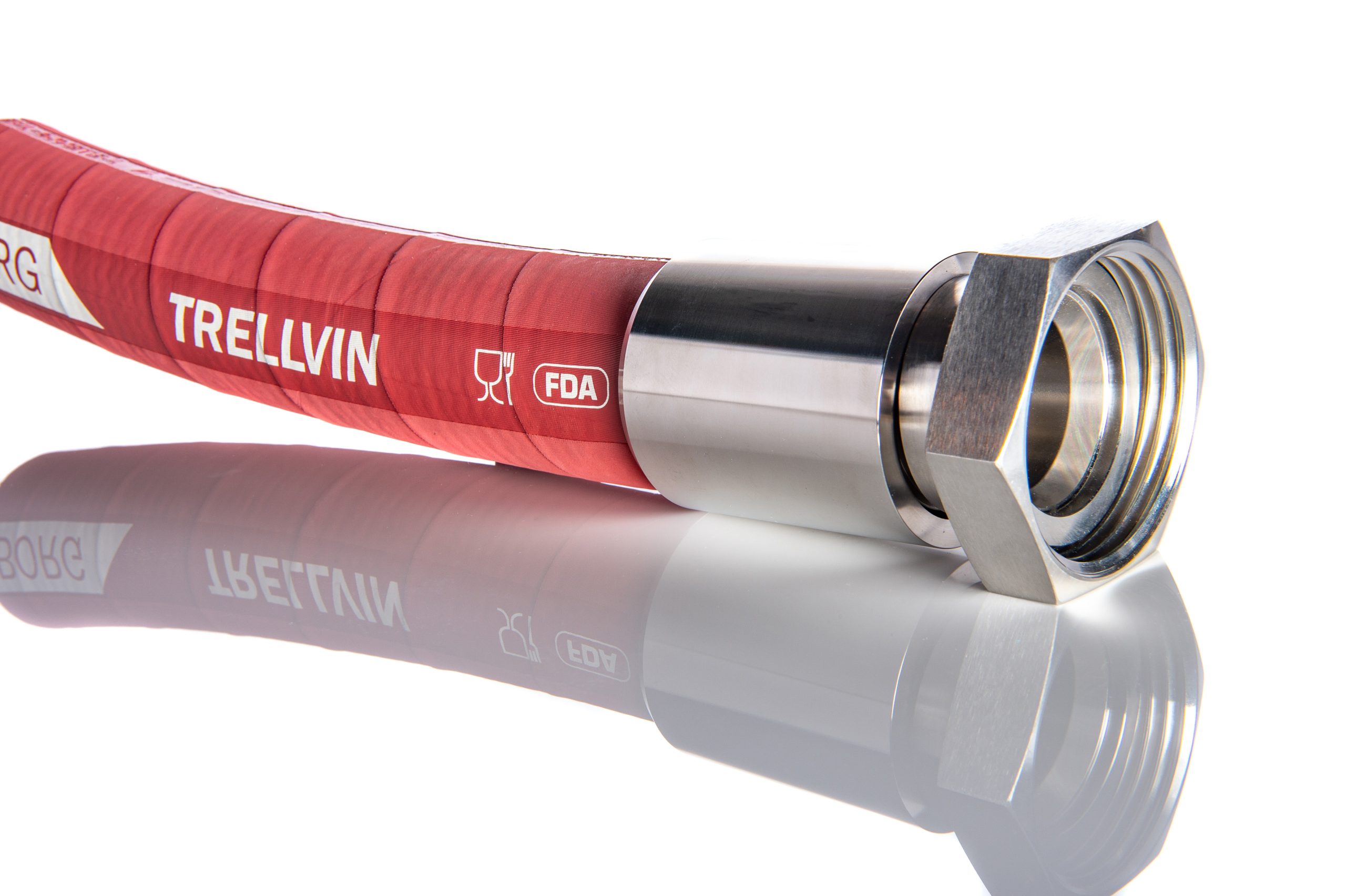

Trellvin Food and Drink Hose

Trellvin

  • Suction and discharge of liquid food such as milk, beer, oil, fat, wine, cider,
    fruit juice and alcohol up to 96%. Suction on unloading
  • Extremely flexible, no kinking
  • Recovers its shape despite accidental ‘squeeze’
  • Smooth seamless white tube that does not propagate bacterial growth and complies with the most stringent
    European and USA regulations
  • Memory recovers shape after accidental squeeze
  • Unaffected by changes in temperature
  • Resistant to cleaning with detergents or steam to max temp of 130°C
  • Non-marking abrasion resistant cover
  • Contains no Phthalate
  • Inner Tube:Food grade EPDM, white, smooth
  • Reinforcement:Synthetic textile with embedded PET helix
  • Cover:Weather and abrasion resistant EPDM, wine-red
  • Temperature Range:-30°C to +100°C
  • Sizes: From minimum ID of 38.0mm/ OD of 50.0mm to Maximum ID of 75.0mm/OD of 88.0mm
  • Working Pressure: 10 bar
  • Bursting Pressure: 30 bar
  • Standard Approval:EU regulation no. 1935/2004 and 2023/2006 FDA regulation no. 21 CFR 177.2600

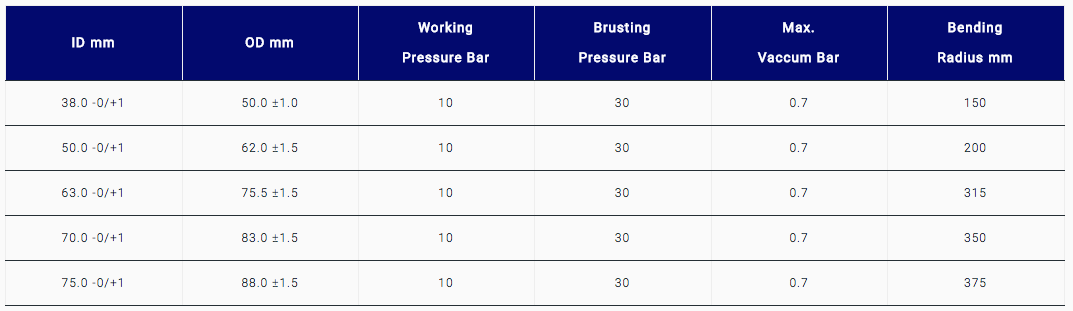

ID mm
OD mm
Working
Pressure Bar
Brusting
Pressure Bar
Max.
Vaccum Bar
Bending
Radius mm
38.0 -0/+1
50.0 ±1.0
10
30
0.7
150
50.0 -0/+1
62.0 ±1.5
10
30
0.7
200
63.0 -0/+1
75.5 ±1.5
10
30
0.7
315
70.0 -0/+1
83.0 ±1.5
10
30
0.7
350
75.0 -0/+1
88.0 ±1.5
10
30
0.7
375



Contact us now to discuss your requirements. 01484 423913
