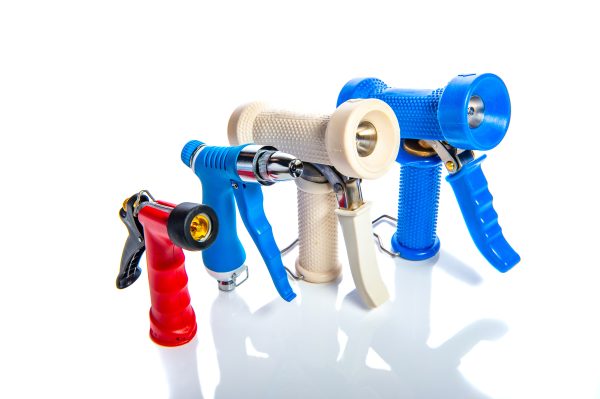

Washdown Guns

The Washdown gun range includes high and low pressure guns, whereby the water patterns of these guns are adjustable from fine spray to a concentrated jet. The range washdown guns are primarily suited to the food processing, beverage, chemical and pharmaceutical industries.

Brass
Stainless Steel
Gilmour Gun
blank blank blank
Heavy Duty Brass Water Gun
Material: Brass body
Cover: Available in blue, red, green and yellow rubber covers
Maximum Working Pressure: 350 PSI (24 bar)
Delivery: 25 Litres/min @73 PSI (5 bar)
Maximum Temperature Handling: 95ºC
Thread: 1⁄2” BSP Female
Heavy Duty Stainless Steel Water Gun
Material: 316 stainless steel body
Cover: Available in blue or white rubber covers
Maximum Working Pressure: 350 PSI (24 bar)
Delivery: 25 Litres/min @73 PSI (5 bar)
Maximum Temperature Handling: 95ºC
Thread: 1⁄2” BSP Female
Material: Chrome plated zinc body
Insulated moulded grip for spraying hot or cold water
Brass head insert for maximum resistance to extremely hot water
Male hose threaded front for attaching accessories
Solid brass valve stem with permanent adjusting nut
‘Hold open’ clip for continuous spraying
Rust resistant stainless steel spring
Maximum Pressure: 100 PSI (7 bar)
Delivery: 33 Litres/min @5 bar
Maximum Temperature Handling: 50°C
Weight: 220g

Dyros Gun
Couplings
Lance Mounting for Water Guns
blank blank blank
General Washdown Gun suitable for many applications
Chrome plated
Insulated handle (407 with trigger guard)
Adjustable flow
Adjustable jet spray pattern
Internal seal nitrile rubber
Quick release nipple inlet 1⁄2”
Maximum Working Pressure: 8 bar
Maximum Temperature: 100°C
Dyros 405
Weight: 300g
Dyros 407
Weight: 500g
The Dyros water hose connectors Series 100-2000-3000 is designed for industrial water applications as well as high pressure water inlets and plumbing installations.
When connected to our washdown guns, they offer a highly efficient washdown facility in factories, garages and abattoirs.
Machined from extruded brass bar with industrial chrome plate finish and incorporating only rust free components. The seal is nitrile.
Dyros 100 connectors are the most popular hose connectors in the market. Thousands of connectors are used every day.
Dyros 2000 and 3000 connectors are used wherever large water capacity is required.
Stainless steel lance both sides 1⁄2” Female. 22cm or 50cm lengths.

Stainless steel lance one side with 1⁄2” protected foam nozzle, one side an adaptor for quick connection, 22cm or 50cm lengths.

Stainless steel lance one side 1⁄2” Female, one side an adaptor for quick connection, 22cm or 50cm lengths.
