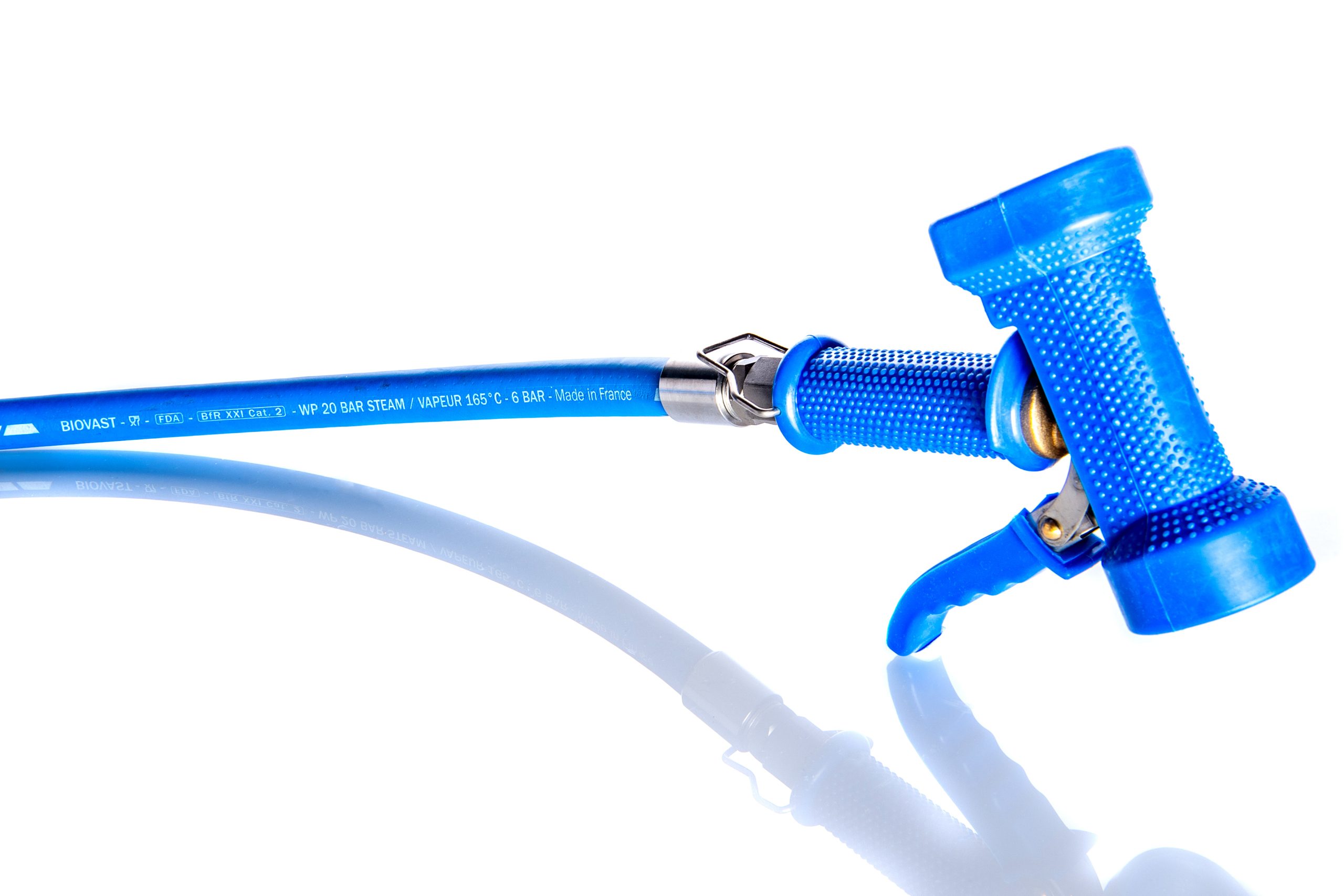

Biovast

Biovast

  • For steam cleaning at temperatures up to +165°C and hot water washing
    in food processing plants. Transfer of hot liquid foodstuffs. Suitable for reel mounted applications
  • Extremely flexible
  • Food grade quality white inner tube, oil resistant
  • Excellent cover resistance to animal/vegetable grease
  • Non-staining cover
  • Contains no Phthalate
  • Inner Tube:Food grade oil resistant NBR, white, smooth
  • Reinforcement:Synthetic textile
  • Cover:Oil and weather resistant NBR/ PVC, blue
  • Temperature Range:-20°C to +100°C
  • Sizes: From minimum ID of 13.0mm/ OD of 23.0mm to Maximum ID of 25.0mm/OD of 37.0mm
  • Working Pressure(vapour): 6 bar
  • Working Pressure(water): 20 bar
  • Bursting Pressure: 60 bar
  • Standard Approval:EU regulation no. 1935/2004 and 2023/2006 FDA regulation no. 21 CFR 177.2600

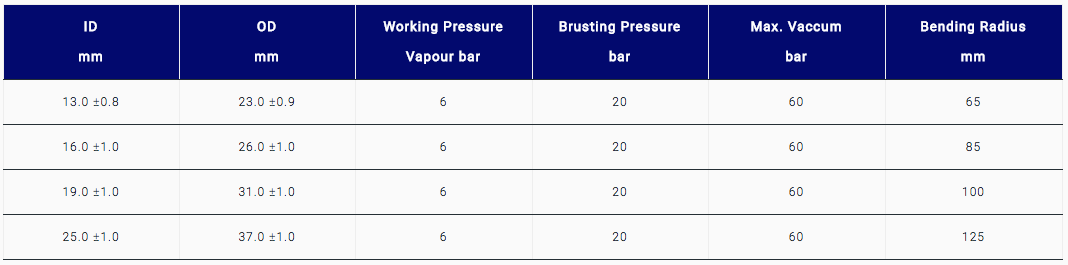

ID
mm
OD
mm
Working Pressure
Vapour bar
Brusting Pressure
bar
Max. Vaccum
bar
Bending Radius
mm
13.0 ±0.8
23.0 ±0.9
6
20
60
65
16.0 ±1.0
26.0 ±1.0
6
20
60
85
19.0 ±1.0
31.0 ±1.0
6
20
60
100
25.0 ±1.0
37.0 ±1.0
6
20
60
125
