Description
Properties
Application
Used globally in applications that require the up most cleanliness and with its heavier wall it is more suited to the arduous applications found in the process plant industry. Kynar (PVDF) braid is ideal for when the application requires low pressure and/or lighter weight hose or if the media being transferred is not compatible with SS 304 / 316 braid.
Design

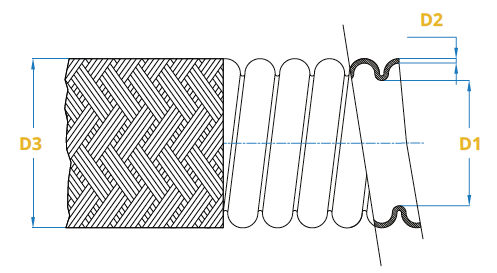

Heavy wall convoluted PTFE tube with Kynar (PVDF) braid – WHITE.
Inner layer
Natural (GP) or Anti-static (AS) helically convoluted heavy wall PTFE tube.
Outer layer
Kynar (PVDF) braid – WHITE.
Temperature Min
-55°C.
Temperature Max
+175°C.
Material
PTFE to: ‘ASTM D4895, TYPE 1, GRADE 4, CLASS B’ & ‘ASTM D4895, TYPE 1, GRADE 3, CLASS B’
| Natural (GP) Part No | Anti-static (AS) Part No | Size (") | ID Nominal (mm) | OD Nominal (mm) | Wall Thickness (mm) | Minimum Bend Radius (mm) | MWP (Bar) | BP (Bar) |
|---|---|---|---|---|---|---|---|---|
| PFSC12-GP-SS-34-RC | PFSC12-AS-SS-34-RC | 1/2'' | 13.40 | 23.00 | 1.60 | 38.00 | 60.00 | 240.00 |
| PFSC20-GP-SS-34-RC | PFSC20-AS-SS-34-RC | 3/4" | 19.50 | 29.00 | 1.80 | 50.00 | 60.00 | 240.00 |
| PFSC22-GP-SS-34-RC | PFSC22-AS-SS-34-RC | 7/8" | 21.00 | 32.00 | 2.10 | 55.00 | 55.00 | 220.00 |
| PFSC25-GP-SS-34-RC | PFSC25-AS-SS-34-RC | 1.00" | 25.50 | 36.50 | 2.20 | 70.00 | 50.00 | 200.00 |
| PFSC32-GP-SS-34-RC | PFSC32-AS-SS-34-RC | 1.25" | 31.80 | 43.50 | 2.65 | 100.00 | 45.00 | 180.00 |
| PFSC40-GP-SS-34-RC | PFSC40-AS-SS-34-RC | 1.50" | 38.80 | 50.80 | 3.00 | 140.00 | 45.00 | 80.00 |
| PFSC50-GP-SS-34-RC | PFSC50-AS-SS-34-RC | 2.00'' | 51.00 | 63.20 | 4.00 | 200.00 | 30.00 | 120.00 |
