SERIES SC – PB

SERIES SC is a super flexible, Smoothbore Convoluted PTFE hose. When space and flexibility are an issue but a smoothbore is a must for an uninterrupted flow and ease of cleaning, it is the ultimate problem solver.

Available with FDA approved Natural (GP) or Anti-static (AS) PTFE tubes. PTFE lined ‘Flared/Tafted’ fittings to improve cleanliness, remove bug traps and improve the ability to clean in place. SERIES SC can be supplied with a Stainless steel 304 / 316, or Polypropylene braid, EPDM & Silicone rubber covers.

Categories: ,

Description

Properties

Application

Used globally in applications that require the up most cleanliness and with its Smoothbore Convoluted liner and heavier wall it is more suited to the arduous applications found in the process plant industries – Pharmaceutical, Bio-pharm, Chemical, Food & Beverage & Clean environments. Polypropylene Braid is ideal for when the application requires low pressure and/or lighter weight hose or if the media being transferred is not compatible with SS 304 / 316 braid.

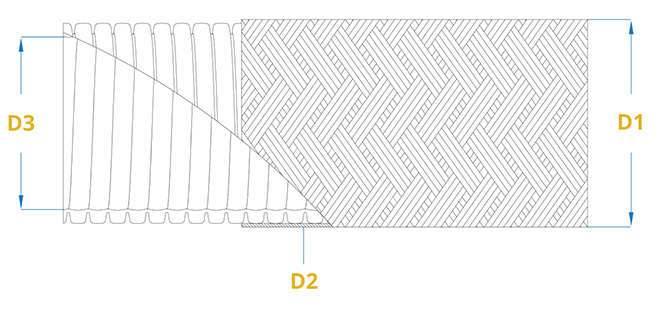

Design

Smoothbore convoluted PTFE tube with Polypropylene Braid – BLUE, YELLOW, WHITE.

Inner layer

Natural (GP) or Anti-static (AS) smoothbore convoluted PTFE tube.

Outer layer

Polypropylene Braid – BLUE, YELLOW, WHITE.

Temperature Min

-60°C

Temperature Max

+90°C

Material

PTFE to: ‘ASTM D4895, TYPE 1, GRADE 4, CLASS B’ & ‘ASTM D4895, TYPE 1, GRADE 3, CLASS B’.

Natural (GP) Part NoAnti-static (AS) Part NoSize
(")
ID Nominal
(mm)
OD Nominal
(mm)
Wall Thickness
(mm)
Minimum
Bend Radius (mm)
MWP
(Bar)
BP
(Bar)
Vacuum
(mBar)
PFHC06-GP-SS-34PFHC06-AS-SS-341/4"7.0012.680.7618.0060.00180.00744.00
PFHC10-GP-SS-34PFHC10-AS-SS-343/8"9.6515.950.7625.0050.00150.00744.00
PFHC12-GP-SS-34PFHC12-AS-SS-341/2"13.0818.900.8940.0045.00135.00887.00
PFHC16-GP-SS-34PFHC16-AS-SS-345/8"16.0022.850.8950.0040.00120.00887.00
PFHC20-GP-SS-34PFHC20-AS-SS-343/4"19.0027.401.0060.0040.00120.00887.00
PFHC25-GP-SS-34PFHC25-AS-SS-341.00"25.4036.001.2080.0035.00105.00887.00
PFHC32-GP-SS-34PFHC32-AS-SS-341.25"31.0042.001.20100.0035.00105.00887.00
PFHC40-GP-SS-34PFHC40-AS-SS-341.50"35.5046.001.60120.0035.00105.00887.00
PFHC45-GP-SS-34PFHC45-AS-SS-341.75"44.0056.001.60135.0025.0075.00887.00
PFHC50-GP-SS-34PFHC50-AS-SS-342.00"47.5059.501.60165.0025.0075.00887.00
PFHC65-GP-SS-34PFHC65-AS-SS-342.50"60.2577.251.60230.0014.0042.00887.00
PFHC80-GP-SS-34PFHC80-AS-SS-343.00"74.0093.001.60260.0012.0036.00887.00
PFHC100-GP-SS-34PFHC100-AS-SS-344.00"98.00122.301.82300.0010.0030.00887.00
PFHC150-GP-SS-34PFHC150-AS-SS-346.00"152.00182.002.50520.006.0018.00455.00
