Description
Properties
Application
Used globally in the Industrial, Chemical, Pharmaceutical, Food Industries when lower grade hoses cannot cope with the temperature, pressure, cleanliness or flex fatigue.
Design

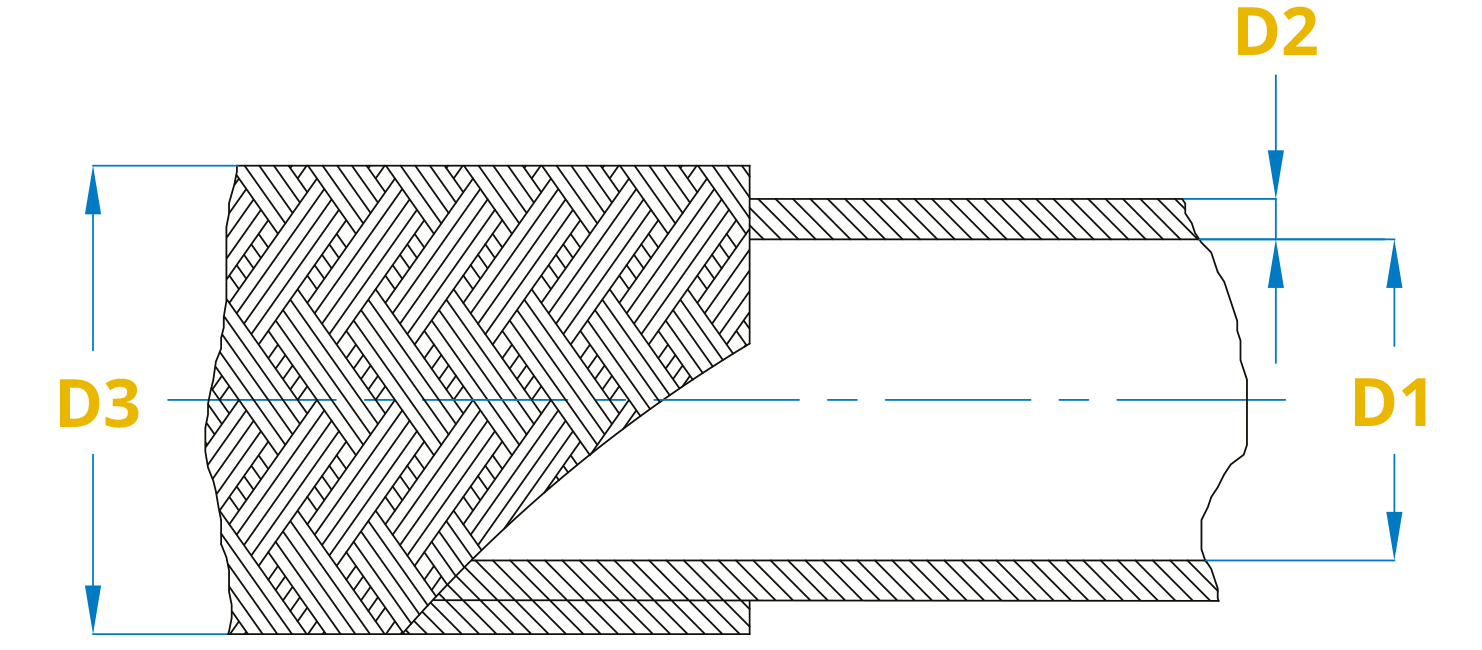

Smoothbore PTFE tube with SS 304 braid.
Inner layer
Natural (GP) or Anti-static (AS) smoothbore PTFE tube.
Outer layer
SS 304 braid.
Temperature Min
-60°C.
Temperature Max
+260°C.
Material
PTFE to: ‘ISO12086, Part1.PTFE-E.P.D.M 1.6.1.C.E.4_12’.
| Natural (GP) Part No | Anti-static (AS) Part No | Size (") | ID Nominal (mm) | OD Nominal (mm) | Wall Thickness (mm) | Minimum Bend Radius (mm) | MWP (Bar) | BP (Bar) |
|---|---|---|---|---|---|---|---|---|
| PFSBPS06-GP-KV-KV-SS-34 | PFSBPS06-AS-KV-KV-SS-34 | 1/4" | 6.20 | 12.80 | 1.02 | 38.00 | 483.00 | 1932.00 |
| PFSBPS08-GP-KV-KV-SS-34 | PFSBPS08-AS-KV-KV-SS-34 | 5/16" | 8.10 | 14.20 | 1.02 | 47.00 | 450.00 | 1800.00 |
| PFSBPS10-GP-KV-KV-SS-34 | PFSBPS10-AS-KV-KV-SS-34 | 3/8" | 9.50 | 16.00 | 1.02 | 64.00 | 430.00 | 1720.00 |
| PFSBPS12-GP-KV-KV-SS-34 | PFSBPS12-AS-KV-KV-SS-34 | 1/2" | 12.70 | 19.50 | 1.02 | 74.00 | 425.00 | 1700.00 |
| PFSBPS16-GP-KV-KV-SS-34 | PFSBPS16-AS-KV-KV-SS-34 | 5/8" | 15.10 | 22.00 | 1.25 | 93.00 | 360.00 | 1440.00 |
| PFSBPS20-GP-KV-KV-SS-34 | PFSBPS20-AS-KV-KV-SS-34 | 3/4" | 20.00 | 27.50 | 1.25 | 180.00 | 275.00 | 1100.00 |
| PFSBPS25-GP-KV-KV-SS-34 | PFSBPS25-AS-KV-KV-SS-34 | 1" | 23.00 | 31.80 | 1.25 | 200.00 | 250.00 | 1000.00 |
