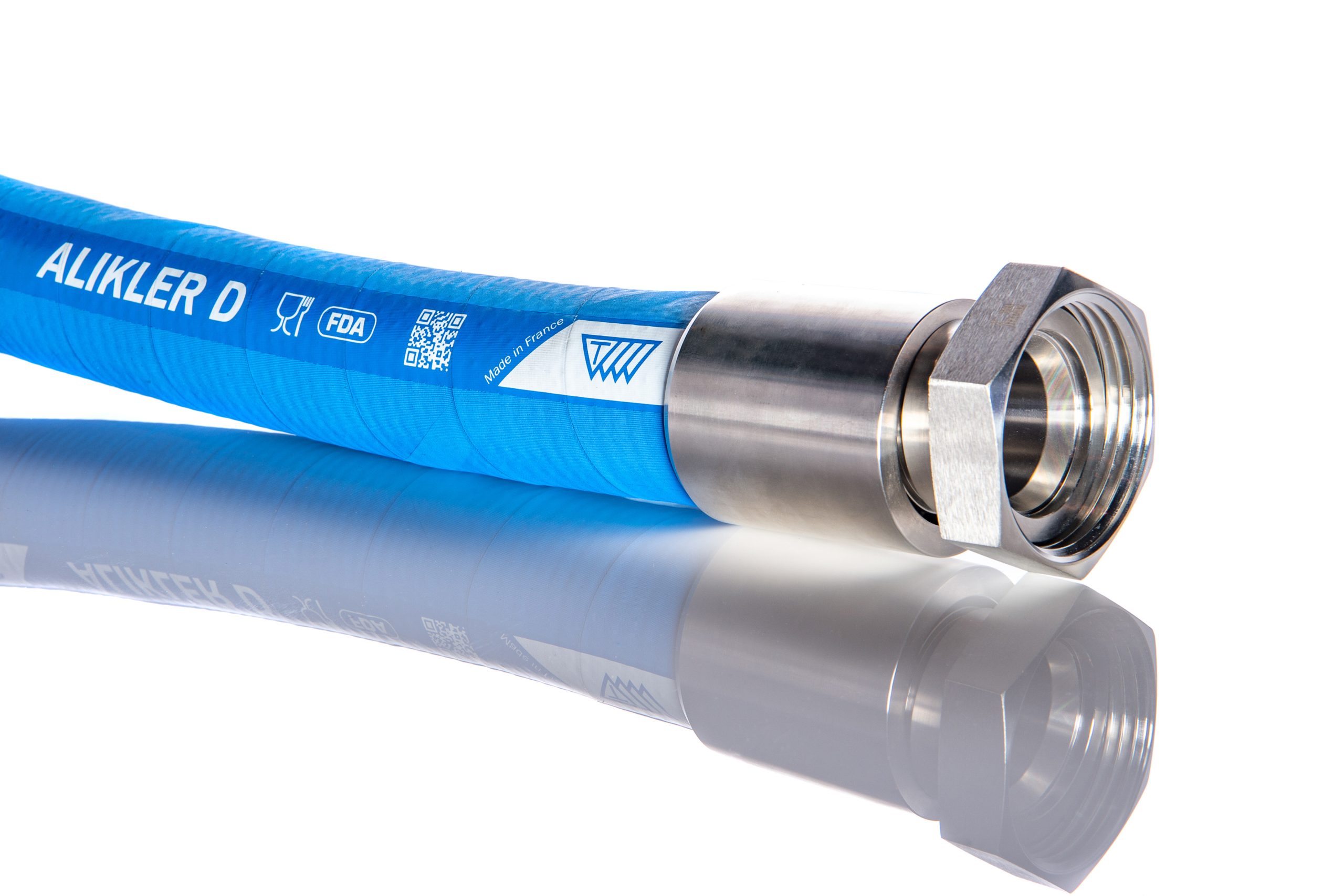

Alikler D Food and Drink Hose

  • High pressure discharge of liquid food such as milk, beer, oil, fat, wine, cider,
    fruit juice and alcohol up to 96%. Suction on unloading. Processing equipment, filling plants and liquid food tankers
  • Memory recovers shape after accidental squeeze
  • Recovers its shape despite accidental ‘squeeze’
  • Smooth seamless white tube that does not propagate bacterial growth and complies with the most stringent European and USA regulations
  • Unaffected by changes in temperature
  • Resistant to cleaning with detergents or steam to max temp of 130°C
  • Non-marking abrasion resistant cover
  • Contains no Phthalate
  • Inner Tube:Food grade oil resistant NBR, white, smooth
  • Reinforcement:Synthetic textile with embedded PET helix
  • Cover:Oil and weather resistant NBR/ PVC, blue
  • Temperature Range:-30°C to +100°C
  • Sizes: From minimum ID of 32.0mm/OD of 44.0mm to Maximum ID of 100.0mm/ OD of 117.0mm
  • Working Pressure: 15 bar
  • Bursting Pressure: 40 bar
  • Standard Approval:EU regulation no. 1935/2004 FDA regulation no. 21 CFR 177.2600

Download Spec Sheet

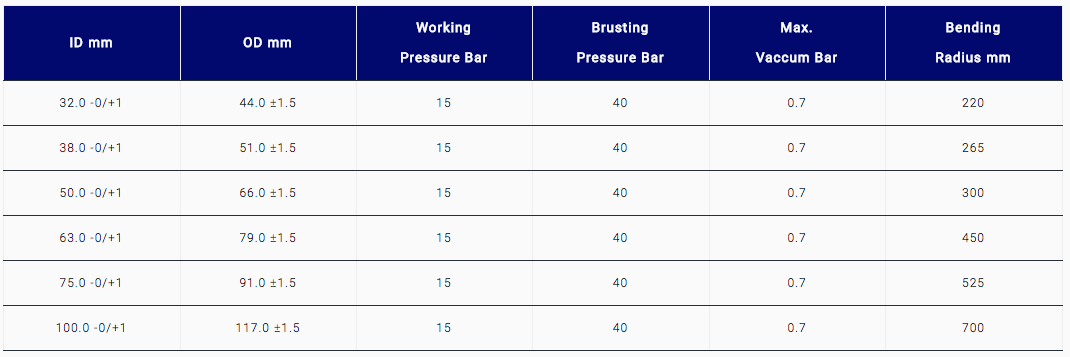

ID mmOD mmWorking Pressure BarBursting Pressure BarMax. Vacuum BarBending Radius mm
32.0 -0/+144.0 ±1.515400.7220
38.0 -0/+151.0 ±1.515400.7265
50.0 -0/+166.0 ±1.515400.7300
63.0 -0/+179.0 ±1.515400.7450
75.0 -0/+191.0 ±1.515400.7525
100.0 -0/+1117.0 ±1.515400.7700
