Description
Properties
Application
Used globally in applications that require the up most cleanliness and with its heavier wall it is more suited to the arduous applications found in the process plant industry. The Silicone cover enables the hose to be wiped clean externally adding to the hygienic nature of certain applications.
Design

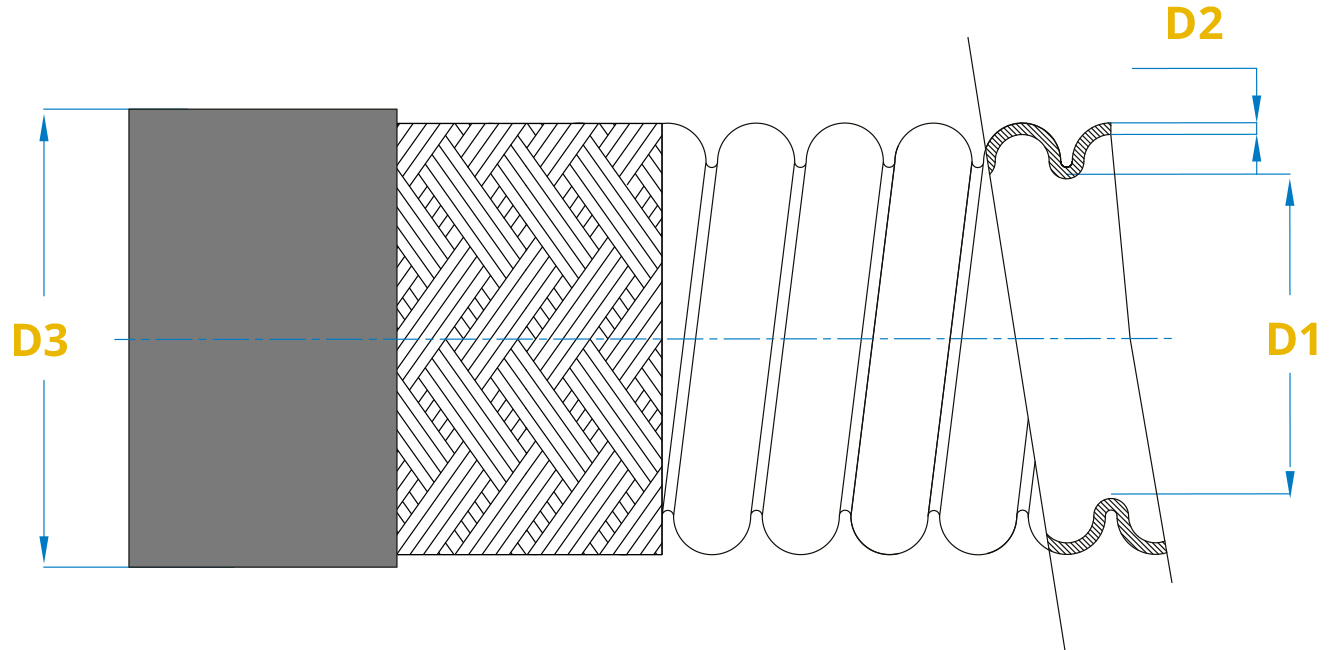

Heavy wall convoluted PTFE tube with SS 304 / 316 braid and Silicone cover – WHITE / BLUE / YELLOW / RED.
Inner layer
Natural (GP) or Anti-static (AS) helically convoluted heavy wall PTFE tube.
Outer layer
SS 304 vacuum wire and SS 304 / 316 braid. Silicone cover – WHITE / BLUE / YELLOW / RED.
(34 = Stainless Steel 304 Grade / 36 = Stainless Steel 316 Grade)
*Vacuum wire can also be removed*
Temperature Min
-73°C.
Temperature Max
+224°C.
Material
PTFE to: ‘ASTM D4895, TYPE 1, GRADE 4, CLASS B’ & ‘ASTM D4895, TYPE 1, GRADE 3, CLASS B’
| Natural (GP) Part No | Anti-static (AS) Part No | Size (mm) | ID Nominal (mm) | OD Nominal (mm) | Wall Thickness (mm) | Minimum Bend Radius (mm) | MWP (Bar) | BP (Bar) |
|---|---|---|---|---|---|---|---|---|
| PFSB49-GP-SS-34 | PFSB49-AS-SS-34 | 4.9mm | 4.90 | 7.87 | 0.76 | 61.00 | 276.00 | 828.00 |
| PFSB67-GP-SS-34 | PFSB67-AS-SS-34 | 6.7mm | 6.70 | 9.35 | 0.76 | 76.00 | 224.00 | 672.00 |
| PFSB84-GP-SS-34 | PFSB84-AS-SS-34 | 8.4mm | 8.40 | 11.05 | 0.76 | 103.00 | 207.00 | 621.00 |
| PFSB10-GP-SS-34 | PFSB10-AS-SS-34 | 10.0mm | 10.00 | 12.65 | 0.76 | 127.00 | 183.00 | 549.00 |
| PFSB132-GP-SS-34 | PFSB132-AS-SS-34 | 13.2mm | 13.20 | 16.55 | 0.89 | 152.00 | 161.00 | 483.00 |
| PFSB168-GP-SS-34 | PFSB168-AS-SS-34 | 16.6mm | 16.60 | 19.75 | 0.89 | 178.00 | 114.00 | 342.00 |
| PFSB198-GP-SS-34 | PFSB198-AS-SS-34 | 19.8mm | 19.80 | 22.96 | 0.89 | 203.00 | 103.00 | 309.00 |
| PFSB261-GP-SS-34 | PFSB261-AS-SS-34 | 26.1mm | 26.10 | 29.25 | 0.89 | 305.00 | 80.00 | 240.00 |
