Description
Properties
Application

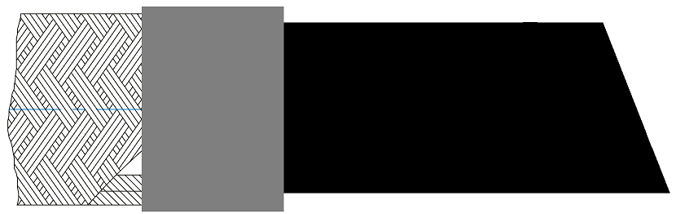

Used globally in applications for unloading and loading aggressive chemicals and process fluids from Intermediate Bulk Containers, Totes, Cubes, Drums, Tanks and Vessels. Dip Pipes are supplied in one meter lengths as standard, but can be supplied in any length to suit application and user requirements.
Design
Heavy wall smoothbore PTFE tube.
Inner layer
Natural (GP) or Anti-static (AS) – Heavy wall smoothbore PTFE tube.
Outer layer
N/A
Temperature Min
-60°C.
Temperature Max
+260°C.
Material
PTFE to: ‘ASTM D4895, TYPE 1, GRADE 4, CLASS B’ & ‘ASTM D4895, TYPE 1, GRADE 3, CLASS B’
| Natural (GP) Part No | Anti-static (AS) Part No | Size (") | ID Nominal (mm) | OD Nominal (mm) | Wall Thickness (mm) | Minimum Bend Radius (mm) | MWP (Bar) | BP (Bar) | Vacuum (mBar) |
|---|---|---|---|---|---|---|---|---|---|
| PFHC06-GP-VW-SS-34 | PFHC06-AS-VW-SS-34 | 1/4" | 7.00 | 12.68 | 0.76 | 18.00 | 60.00 | 180.00 | 744.00 |
| PFHC10-GP-VW-SS-34 | PFHC10-AS-VW-SS-34 | 3/8" | 9.65 | 15.95 | 0.76 | 25.00 | 50.00 | 150.00 | 744.00 |
| PFHC12-GP-VW-SS-34 | PFHC12-AS-VW-SS-34 | 1/2" | 13.08 | 18.90 | 0.89 | 40.00 | 45.00 | 135.00 | 887.00 |
| PFHC16-GP-VW-SS-34 | PFHC16-AS-VW-SS-34 | 5/8" | 16.00 | 22.85 | 0.89 | 50.00 | 40.00 | 120.00 | 887.00 |
| PFHC20-GP-VW-SS-34 | PFHC20-AS-VW-SS-34 | 3/4" | 19.00 | 27.40 | 1.00 | 60.00 | 40.00 | 120.00 | 887.00 |
| PFHC25-GP-VW-SS-34 | PFHC25-AS-VW-SS-34 | 1.00" | 25.40 | 36.00 | 1.20 | 80.00 | 35.00 | 105.00 | 887.00 |
| PFHC32-GP-VW-SS-34 | PFHC32-AS-VW-SS-34 | 1.25" | 31.00 | 42.00 | 1.20 | 100.00 | 35.00 | 105.00 | 887.00 |
| PFHC40-GP-VW-SS-34 | PFHC40-AS-VW-SS-34 | 1.50" | 35.50 | 46.00 | 1.60 | 120.00 | 35.00 | 105.00 | 887.00 |
| PFHC45-GP-VW-SS-34 | PFHC45-AS-VW-SS-34 | 1.75" | 44.00 | 56.00 | 1.60 | 135.00 | 25.00 | 75.00 | 887.00 |
| PFHC50-GP-VW-SS-34 | PFHC50-AS-VW-SS-34 | 2.00" | 47.50 | 59.50 | 1.60 | 165.00 | 25.00 | 75.00 | 887.00 |
| PFHC65-GP-VW-SS-34 | PFHC65-AS-VW-SS-34 | 2.50" | 60.25 | 77.25 | 1.60 | 230.00 | 14.00 | 42.00 | 887.00 |
| PFHC80-GP-VW-SS-34 | PFHC80-AS-VW-SS-34 | 3.00" | 74.00 | 93.00 | 1.60 | 260.00 | 12.00 | 36.00 | 887.00 |
| PFHC100-GP-VW-SS-34 | PFHC100-AS-VW-SS-34 | 4.00" | 98.00 | 122.30 | 1.82 | 300.00 | 10.00 | 30.00 | 887.00 |
| PFHC150-GP-VW-SS-34 | PFHC150-AS-VW-SS-34 | 6.00" | 152.00 | 182.00 | 2.50 | 520.00 | 6.00 | 18.00 | 455.00 |
