Description
Properties
Application
Used globally in applications that require the up most cleanliness and with its Smoothbore Convoluted liner and heavier wall it is more suited to the arduous applications found in the process plant industries – Pharmaceutical, Bio-pharm, Chemical, Food & Beverage & Clean environments.
Design

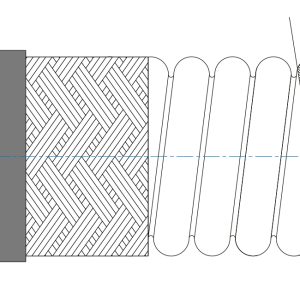

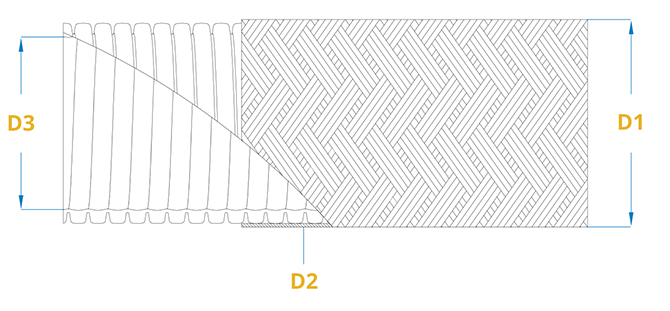

Smoothbore Convoluted PTFE tube with Stainless Steel 304 / 316 braid.
Inner layer
Natural (GP) or Anti-static (AS) smoothbore convoluted PTFE tube.
Outer layer
SS 304 / 316 braid.
(34 = Stainless Steel 304 Grade / 36 = Stainless Steel 316 Grade)
Temperature Min
-60°C.
Temperature Max
+260°C.
Material
PTFE to: ‘ASTM D4895, TYPE 1, GRADE 4, CLASS B’ & ‘ASTM D4895, TYPE 1, GRADE 3, CLASS B’.
| Natural (GP) Part No | Anti-static (AS) Part No | Size (") | ID Nominal (mm) | OD Nominal (mm) | Wall Thickness (mm) | Minimum Bend Radius (mm) | MWP (Bar) | BP (Bar) | Vacuum (mBar) |
|---|---|---|---|---|---|---|---|---|---|
| PFHC06-GP-SS-34 | PFHC06-AS-SS-34 | 1/4" | 7 | 12.68 | 0.76 | 18 | 60 | 180 | 744 |
| PFHC10-GP-SS-34 | PFHC10-AS-SS-34 | 3/8" | 9.65 | 15.95 | 0.76 | 25 | 50 | 150 | 744 |
| PFHC12-GP-SS-34 | PFHC12-AS-SS-34 | 1/2" | 13.08 | 18.9 | 0.89 | 40 | 45 | 135 | 887 |
| PFHC16-GP-SS-34 | PFHC16-AS-SS-34 | 5/8" | 16 | 22.85 | 0.89 | 50 | 40 | 120 | 887 |
| PFHC20-GP-SS-34 | PFHC20-AS-SS-34 | 3/4" | 19 | 27.4 | 1 | 60 | 40 | 120 | 887 |
| PFHC25-GP-SS-34 | PFHC25-AS-SS-34 | 1.00" | 25.4 | 36 | 1.2 | 80 | 35 | 105 | 887 |
| PFHC32-GP-SS-34 | PFHC32-AS-SS-34 | 1.25" | 31 | 42 | 1.2 | 100 | 35 | 105 | 887 |
| PFHC40-GP-SS-34 | PFHC40-AS-SS-34 | 1.50" | 35.5 | 46 | 1.6 | 120 | 35 | 105 | 887 |
| PFHC45-GP-SS-34 | PFHC45-AS-SS-34 | 1.75" | 44 | 56 | 1.6 | 135 | 25 | 75 | 887 |
| PFHC50-GP-SS-34 | PFHC50-AS-SS-34 | 2.00" | 47.5 | 59.5 | 1.6 | 165 | 25 | 75 | 887 |
| PFHC65-GP-SS-34 | PFHC65-AS-SS-34 | 2.50" | 60.25 | 77.25 | 1.6 | 230 | 14 | 42 | 887 |
| PFHC80-GP-SS-34 | PFHC80-AS-SS-34 | 3.00" | 74 | 93 | 1.6 | 260 | 12 | 36 | 887 |
| PFHC100-GP-SS-34 | PFHC100-AS-SS-34 | 4.00" | 98 | 122.3 | 1.82 | 300 | 10 | 30 | 887 |
| PFHC150-GP-SS-34 | PFHC150-AS-SS-34 | 6.00" | 152 | 182 | 2.5 | 520 | 6 | 18 | 455 |
