SERIES SC – SS/RC

SERIES SC is a super flexible, Smoothbore Convoluted PTFE hose. When space and flexibility are an issue but a smoothbore is a must for an uninterrupted flow and ease of cleaning, it is the ultimate problem solver.

Available with FDA approved Natural (GP) or Anti-static (AS) PTFE tubes. PTFE lined ‘Flared/Tafted’ fittings to improve cleanliness, remove bug traps and improve the ability to clean in place. SERIES SC can be supplied with a Stainless steel 304 / 316, or Polypropylene braid, EPDM & Silicone rubber covers.

Categories: ,

Description

Properties

Application

Used globally in applications that require the up most cleanliness and with its Smoothbore Convoluted liner and heavier wall it is more suited to the arduous applications found in the process plant industries – Pharmaceutical, Bio-pharm, Chemical, Food & Beverage & Clean environments. The EPDM rubber cover makes the hose much more rugged for harsh external environments.

Design

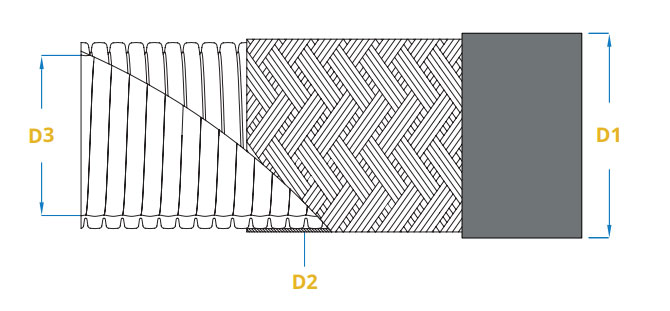

Smoothbore convoluted PTFE tube with Stainless Steel 304 / 316 braid and a vulcanised EPDM rubber cover – BLUE / BLACK.

Inner layer

Natural (GP) or Anti-static (AS) smoothbore convoluted PTFE tube.

Outer layer

SS 304 / 316 braid and EPDM vulcanised rubber cover – BLUE / BLACK.

(34 = Stainless Steel 304 Grade / 36 = Stainless Steel 316 Grade)

Temperature Min

-40°C.

Temperature Max

+150°C

Material

PTFE to: ‘ASTM D4895, TYPE 1, GRADE 4, CLASS B’ & ‘ASTM D4895, TYPE 1, GRADE 3, CLASS B’.
