Description
Properties
Application
Used globally in applications that require the up most cleanliness and with its Smoothbore Convoluted liner and heavier wall it is more suited to the arduous applications found in the process plant industries – Pharmaceutical, Bio-pharm, Chemical, Food & Beverage & Clean environments. The Silicone cover enables the hose to be cleaned externally adding to the hygienic nature of certain applications.
Design

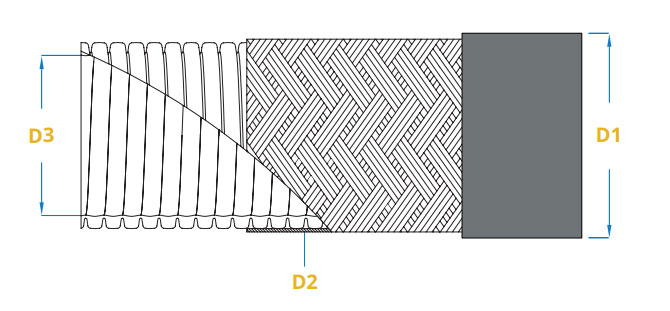

Smoothbore convoluted PTFE tube with SS 304 / 316 braid and Silicone cover – WHITE / BLUE / YELLOW / RED.
Inner layer
Natural (GP) or Anti-static (AS) smoothbore convoluted PTFE tube.
Outer layer
SS 304 / 316 braid and Silicone cover – WHITE / BLUE / YELLOW / RED.
(34 = Stainless Steel 304 Grade / 36 = Stainless Steel 316 Grade)
Temperature Min
-73°C
Temperature Max
+204°C
Material
PTFE to: ‘ASTM D4895, TYPE 1, GRADE 4, CLASS B’ & ‘ASTM D4895, TYPE 1, GRADE 3, CLASS B’.
