Description
Properties
Application
Used globally in applications that require the up most cleanliness and with its heavier wall it is more suited to the arduous applications found in the process plant industry. The EPDM rubber cover makes the hose much more rugged for harsh external environments.
Design

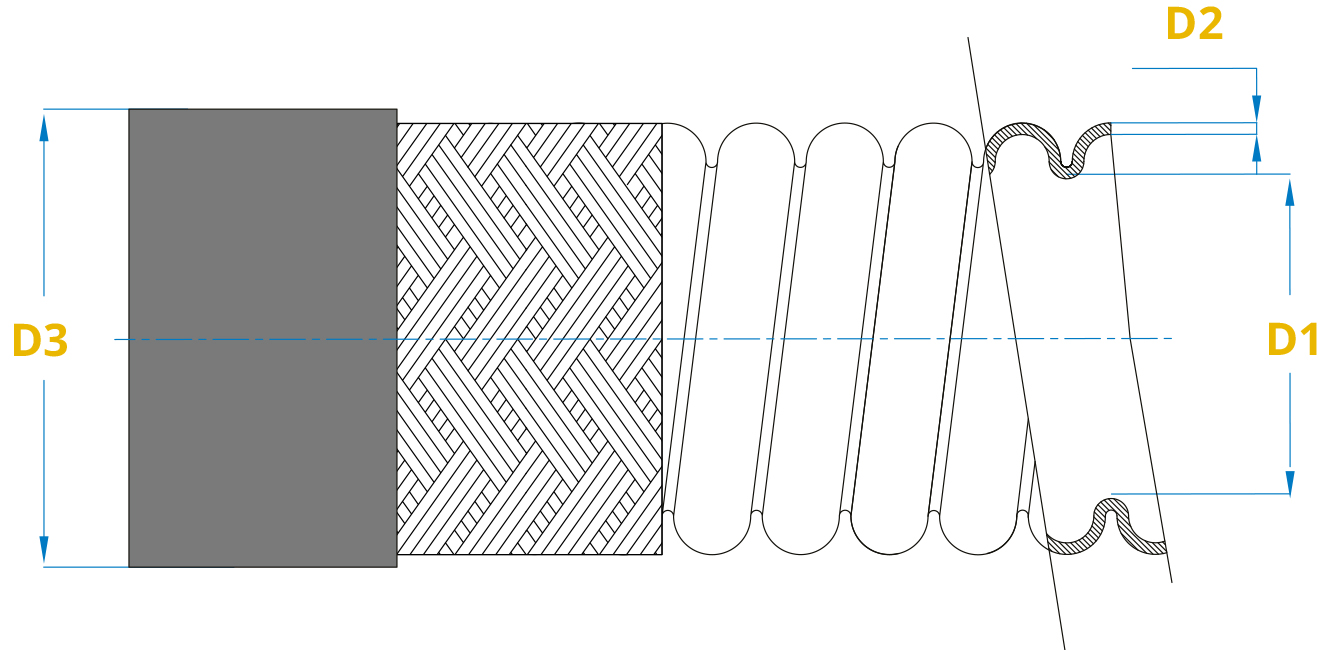

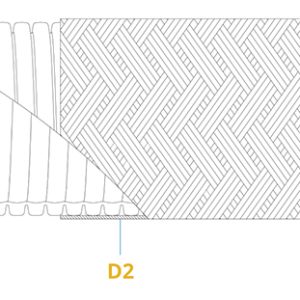

Heavy wall convoluted PTFE tube with SS 304 / 316 braid and a vulcanised EPDM rubber cover – BLUE / BLACK.
Inner layer
Natural (GP) or Anti-static (AS) helically convoluted heavy wall PTFE tube.
Outer layer
SS 304 vacuum wire and SS 304 / 316 braid. EPDM vulcanised rubber cover – BLUE / BLACK.
(34 = Stainless Steel 304 Grade / 36 = Stainless Steel 316 Grade)
*Vacuum wire can also be removed*
Temperature Min
-40°C.
Temperature Max
+150°C.
Material
PTFE to: ‘ASTM D4895, TYPE 1, GRADE 4, CLASS B’ & ‘ASTM D4895, TYPE 1, GRADE 3, CLASS B’
| Natural (GP) Part No | Anti-static (AS) Part No | Size (DASH) | ID Nominal (mm) | OD Nominal (mm) | Wall Thickness (mm) | Minimum Bend Radius (mm) | MWP (Bar) | BP (Bar) |
|---|---|---|---|---|---|---|---|---|
| PFSBDASH4-GP-SS-34 | PFSBDASH4-AS-SS-34 | DASH 4 (3/16") SAE 100 R14 | 4.90 | 7.65 | 0.70 | 51.00 | 207.00 | 827.00 |
| PFSBDASH5-GP-SS-34 | PFSBDASH5-AS-SS-34 | DASH 5 (1/4") SAE 100 R14 | 6.51 | 9.50 | 0.70 | 76.00 | 181.00 | 724.00 |
| PFSBDASH6-GP-SS-34 | PFSBDASH6-AS-SS-34 | DASH 6 (5/16") SAE 100 R14 | 8.10 | 11.00 | 0.70 | 100.00 | 172.00 | 690.00 |
| PFSBDASH7-GP-SS-34 | PFSBDASH7-AS-SS-34 | DASH 7 (3/8") SAE 100 R14 | 9.70 | 12.60 | 0.71 | 127.00 | 155.00 | 621.00 |
| PFSBDASH8-GP-SS-34 | PFSBDASH8-AS-SS-34 | DASH 8 (13/32") SAE 100 R14 | 10.57 | 13.61 | 0.71 | 133.00 | 138.00 | 552.00 |
| PFSBDASH10-GP-SS-34 | PFSBDASH9-AS-SS-34 | DASH 10 (1/2") SAE 100 R14 | 12.95 | 16.10 | 0.76 | 165.00 | 103.00 | 414.00 |
| PFSBDASH12-GP-SS-34 | PFSBDASH12-AS-SS-34 | DASH 12 (5/8") SAE 100 R14 | 16.10 | 19.38 | 0.85 | 197.00 | 86.00 | 345.00 |
| PFSBDASH14-GP-SS-34 | PFSBDASH14-AS-SS-34 | DASH 14 (3/4") SAE 100 R14 | 19.21 | 22.55 | 0.85 | 229.00 | 76.00 | 303.00 |
| PFSBDASH16-GP-SS-34 | PFSBDASH16-AS-SS-34 | DASH 16 (7/8") SAE 100 R14 | 22.22 | 25.78 | 0.89 | 229.00 | 69.00 | 276.00 |
| PFSBDASH18-GP-SS-34 | PFSBDASH18-AS-SS-34 | DASH 18 (1") SAE 100 R14 | 25.40 | 29.75 | 1.10 | 305.00 | 62.00 | 248.00 |
