Used globally in applications that require the up most cleanliness and with its heavier wall it is more suited to the arduous applications found in the process plant industry. Polypropylene Braid is ideal for when the application requires low pressure and or a lighter weight hose or if the media being transferred is not compatible with SS 304 / 316 braid.
Design
Heavy wall convoluted PTFE tube with Polypropylene braid – BLUE, YELLOW, WHITE.
Inner layer
Natural (GP) or Anti-static (AS) helically convoluted heavy wall PTFE tube.
Outer layer
Polypropylene braid – BLUE, WHITE, YELLOW.
Temperature Min
-60°C.
Temperature Max
+90°C.
Material
PTFE to: ‘ASTM D4895, TYPE 1, GRADE 4, CLASS B’ & ‘ASTM D4895, TYPE 1, GRADE 3, CLASS B’

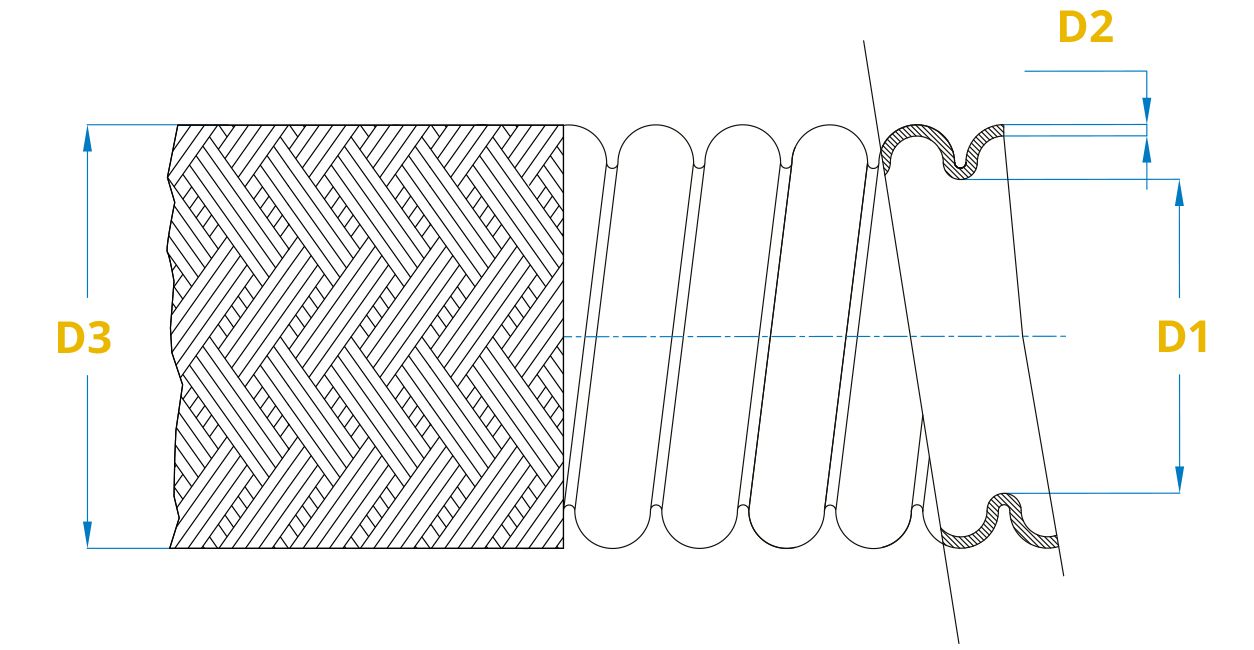

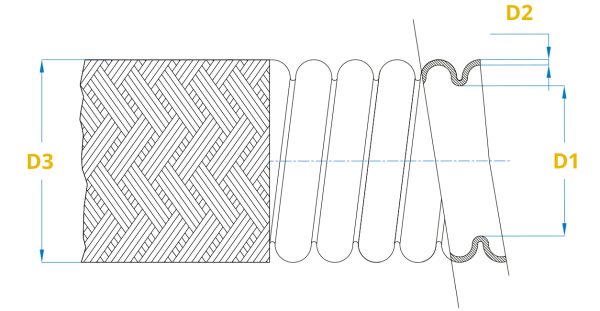

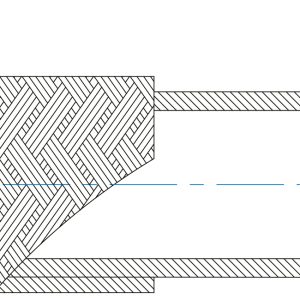

| Part Number NATURAL | Part Number ANTISTATIC | Size | D1 ID Nominal (mm) | D2 Wall Thickness (mm) | D3 OD Nominal (mm) | Minimum Bend Radius (mm) | MWP (Bar) | BP (Bar) 20°C | Vacuum (mBar) |
|---|---|---|---|---|---|---|---|---|---|
| TCMKYB012 | TCAMKYB012 | 1/2" | 13.08 | 0.89 | 21.90 | 40 | 10 | 40 | 887 |
| TCMKYB016 | TCAMKYB016 | 5/8" | 16.00 | 0.89 | 25.85 | 50 | 10 | 40 | 887 |
| TCMKYB020 | TCAMKYB020 | 3/4" | 19.00 | 1.00 | 30.40 | 60 | 10 | 40 | 887 |
| TCMKYB025 | TCAMKYB025 | 1" | 25.40 | 1.20 | 40.00 | 80 | 10 | 40 | 887 |
| TCMKYB032 | TCAMKYB032 | 1.25" | 31.00 | 1.20 | 46.00 | 100 | 10 | 40 | 887 |
| TCMKYB040 | TCAMKYB040 | 1.5" | 35.50 | 1.60 | 50.00 | 120 | 10 | 40 | 887 |
| TCMKYB045 | TCAMKYB045 | 1.75" | 44.00 | 1.60 | 61.00 | 135 | 10 | 40 | 887 |
| TCMKYB050 | TCAMKYB050 | 2" | 47.50 | 1.60 | 65.50 | 165 | 10 | 40 | 887 |
| TCMKYB065 | TCAMKYB065 | 2.5" | 60.25 | 1.60 | 87.25 | 230 | 10 | 40 | 887 |
| TCMKYB080 | TCAMKYB080 | 3" | 74.00 | 1.60 | 99.00 | 260 | 7 | 28 | 887 |
| TCMKYB100 | TCAMKYB100 | 4" | 98.00 | 1.82 | 133.30 | 300 | 6 | 24 | 887 |
