Description
Properties
Application
Used globally in applications that require the up most cleanliness and with its heavier wall it is more suited to the arduous applications found in the process plant industry. The SS 304 vacuum wire adds strength to the hose whilst also giving vacuum resistance.
Design

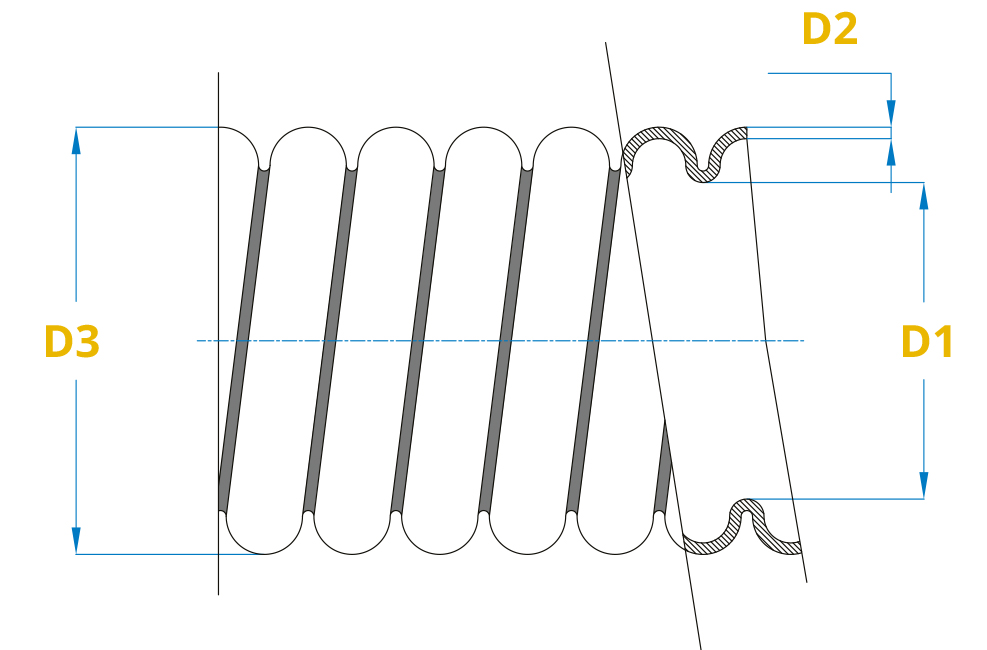

Heavy wall convoluted PTFE tube with SS 304 vacuum wire.
Inner layer
Natural (GP) or Anti-static (AS) helically convoluted heavy wall PTFE tube.
Outer layer
SS 304 vacuum wire.
Temperature Min
-60°C
Temperature Max
+260°C
Material
PTFE to: ‘ASTM D4895, TYPE 1, GRADE 4, CLASS B’ & ‘ASTM D4895, TYPE 1, GRADE 3, CLASS B’
| Natural (GP) Part No | Anti-static (AS) Part No | Size (") | ID Nominal (mm) | OD Nominal (mm) | Wall Thickness (mm) | Minimum Bend Radius (mm) | MWP (Bar) | BP (Bar) | Vacuum (mBar) |
|---|---|---|---|---|---|---|---|---|---|
| PFHC12-GP-VW-PB | PFHC12-AS-VW-PB | 1/2" | 13.08 | 21.90 | 0.89 | 40.00 | 10.00 | 40.00 | 887.00 |
| PFHC16-GP-VW-PB | PFHC16-AS-VW-PB | 5/8" | 16.00 | 25.85 | 0.89 | 50.00 | 10.00 | 40.00 | 887.00 |
| PFHC20-GP-VW-PB | PFHC20-AS-VW-PB | 3/4" | 19.00 | 30.40 | 1.00 | 60.00 | 10.00 | 40.00 | 887.00 |
| PFHC25-GP-VW-PB | PFHC25-AS-VW-PB | 1.00" | 25.40 | 40.00 | 1.20 | 80.00 | 10.00 | 40.00 | 887.00 |
| PFHC32-GP-VW-PB | PFHC32-AS-VW-PB | 1.25" | 31.00 | 46.00 | 1.20 | 100.00 | 10.00 | 40.00 | 887.00 |
| PFHC40-GP-VW-PB | PFHC40-AS-VW-PB | 1.50" | 35.50 | 50.00 | 1.60 | 120.00 | 10.00 | 40.00 | 887.00 |
| PFHC45-GP-VW-PB | PFHC45-AS-VW-PB | 1.75" | 44.00 | 61.00 | 1.60 | 135.00 | 10.00 | 40.00 | 887.00 |
| PFHC50-GP-VW-PB | PFHC50-AS-VW-PB | 2.00" | 47.50 | 65.50 | 1.60 | 165.00 | 10.00 | 40.00 | 887.00 |
| PFHC65-GP-VW-PB | PFHC65-AS-VW-PB | 2.50" | 60.25 | 87.25 | 1.60 | 230.00 | 10.00 | 40.00 | 887.00 |
| PFHC80-GP-VW-PB | PFHC80-AS-VW-PB | 3.00" | 74.00 | 99.00 | 1.60 | 260.00 | 7.00 | 28.00 | 887.00 |
| PFHC100-GP-VW-PB | PFHC100-AS-VW-PB | 4.00" | 98.00 | 133.30 | 1.82 | 300.00 | 6.00 | 24.00 | 887.00 |
