SERIES HC – VW/SS

SERIES HC is a Heavy wall extruded Convoluted hose used extensively throughout the process industry. It’s self cleaning design and unique way the hose can be lined through the fittings make a completely bug free environment for applications where cleanliness is paramount. Also, protects fittings against corrosion in applications transferring aggressive medias.

SERIES HC – VW/SS, used globally in applications that require the up most cleanliness and with its heavier wall it is more suited to the arduous applications found in the process plant industry. The vacuum wire and SS 304 / 316 braid gives vacuum resistance and higher pressure in applications.

Categories: ,

Description

Properties

Application

Used globally in applications that require the up most cleanliness and with its heavier wall it is more suited to the arduous applications found in the process plant industry. The vacuum wire and SS 304 / 316 braid gives vacuum resistance and higher pressure in applications.

Design

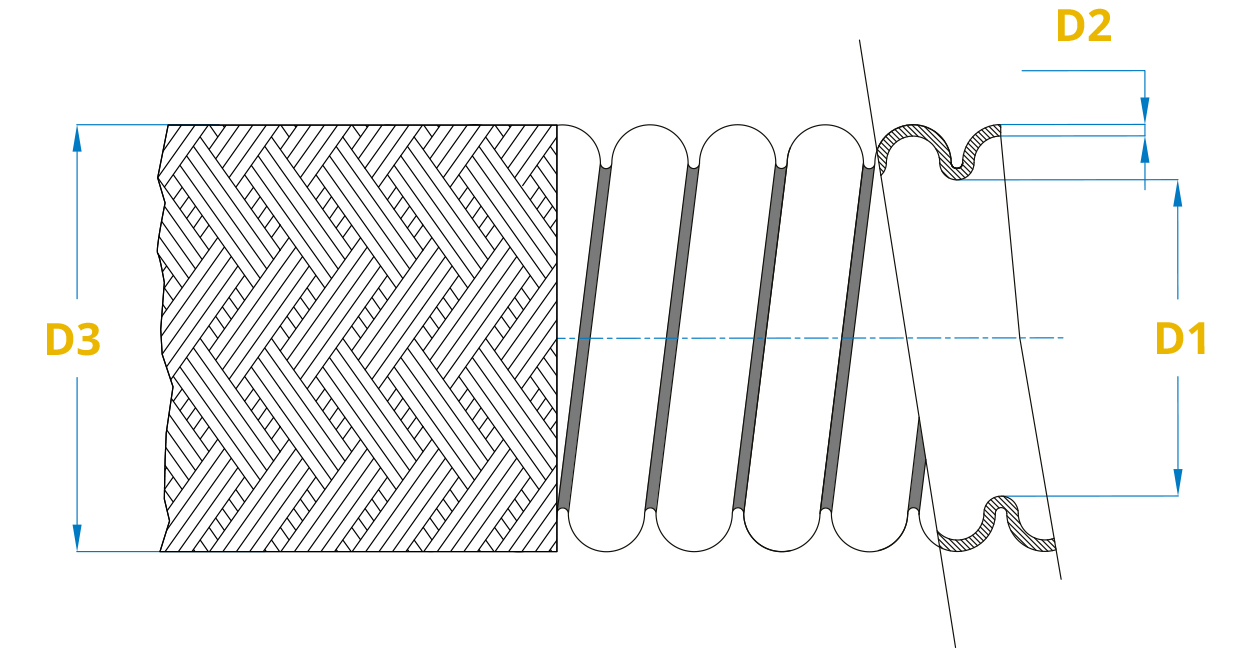

Heavy wall convoluted PTFE tube with vacuum wire and SS 304 / 316 braid.

Inner layer

Natural (GP) or Anti-static (AS) helically convoluted heavy wall PTFE tube.

Outer layer

SS 304 vacuum wire and SS 304 / 316 braid.

(34 = Stainless Steel 304 Grade / 36 = Stainless Steel 316 Grade)

Temperature Min

-60°C.

Temperature Max

+260°C.

Material

PTFE to: ‘ASTM D4895, TYPE 1, GRADE 4, CLASS B’ & ‘ASTM D4895, TYPE 1, GRADE 3, CLASS B’

Natural (GP)
Part No
Anti-static (AS)
Part No
Size
(")
ID Nominal
(mm)
OD Nominal
(mm)
Wall Thickness
(mm)
Minimum
Bend Radius (mm)
MWP
(Bar)
BP
(Bar)
Vacuum
(mBar)
PFHC12-GP-VW-SS-34-RCPFHC12-AS-VW-SS-34-RC1/2"13.0824.900.8940.0045.00135.00887.00
PFHC16-GP-VW-SS-34-RCPFHC16-AS-VW-SS-34-RC5/8"16.0028.850.8950.0040.00120.00887.00
PFHC20-GP-VW-SS-34-RCPFHC20-AS-VW-SS-34-RC3/4"19.0033.401.0060.0040.00120.00887.00
PFHC25-GP-VW-SS-34-RCPFHC25-AS-VW-SS-34-RC1.00"25.4042.001.2080.0035.00105.00887.00
PFHC32-GP-VW-SS-34-RCPFHC32-AS-VW-SS-34-RC1.25"31.0048.001.20100.0035.00105.00887.00
PFHC40-GP-VW-SS-34-RCPFHC40-AS-VW-SS-34-RC1.50"35.5052.001.60120.0035.00105.00887.00
PFHC45-GP-VW-SS-34-RCPFHC45-AS-VW-SS-34-RC1.75"44.0062.001.60135.0025.0075.00887.00
PFHC50-GP-VW-SS-34-RCPFHC50-AS-VW-SS-34-RC2.00"47.5065.501.60165.0025.0075.00887.00
PFHC65-GP-VW-SS-34-RCPFHC65-AS-VW-SS-34-RC2.50"60.2583.251.60230.0014.0042.00887.00
PFHC80-GP-VW-SS-34-RCPFHC80-AS-VW-SS-34-RC3.00"74.0099.001.60260.0012.0036.00887.00
PFHC100-GP-VW-SS-34-RCPFHC100-AS-VW-SS-34-RC4.00"98.00128.301.82300.0010.0030.00887.00
PFHC150-GP-VW-SS-34-RCPFHC150-AS-VW-SS-34-RC6.00"152.00188.002.50520.006.0018.00455.00
