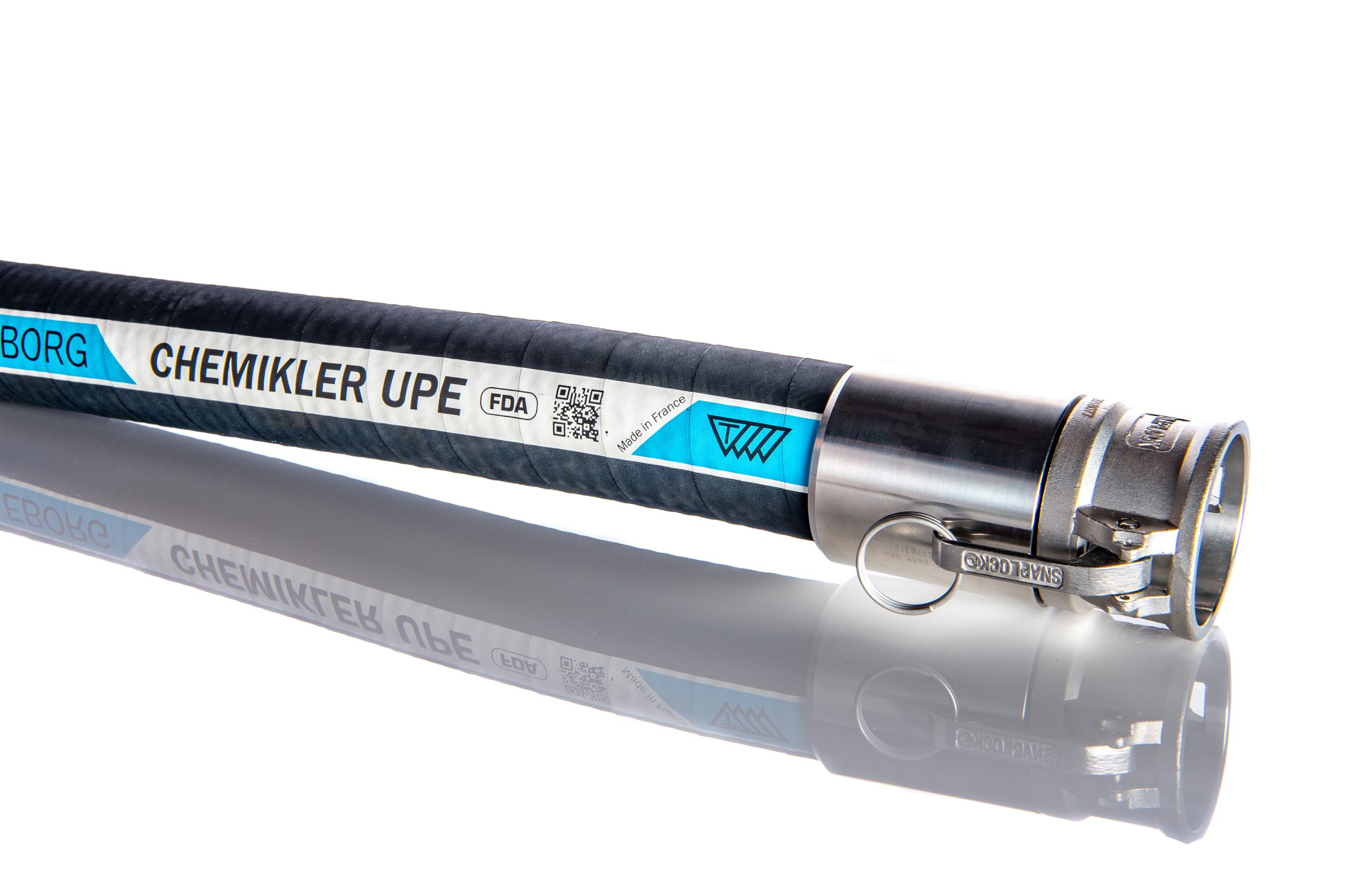

Chemikler UPE Chemical Hose

Chemikler UPE

  • Suction and discharge of most corrosive chemicals, acids, solvents (chlorinated or oxygenised), aromatic hydracarbons. For unloading bays, mobile and fixed installations in chemical plants
  • Versatile hose for a wide range of chemicals
  • Hose construction gives excellent mechanical strength
  • Hose construction gives excellent bending radius
  • Inner tube compliant with FDA
  • Smooth inner tube for easier cleaning
  • Excellent resistance to ageing, atmospheric conditions, ozone, abrasion and chemicals cover
  • Inner Tube:UPE (ultra high molecular weight polyethylene), black, smooth Reinforcement: Synthetic textile with
    steel embedded helix
  • Cover:Chemical and weather resistant EPDM, black
  • Temperature Range:-40°C to +100°C
  • Sizes: From minimum ID of 19.0mm/ OD of 31.0mm to Maximum ID of 100.0mm/OD of 116.0mm
  • Working Pressure : 16 bar
  • Bursting Pressure: 64 bar

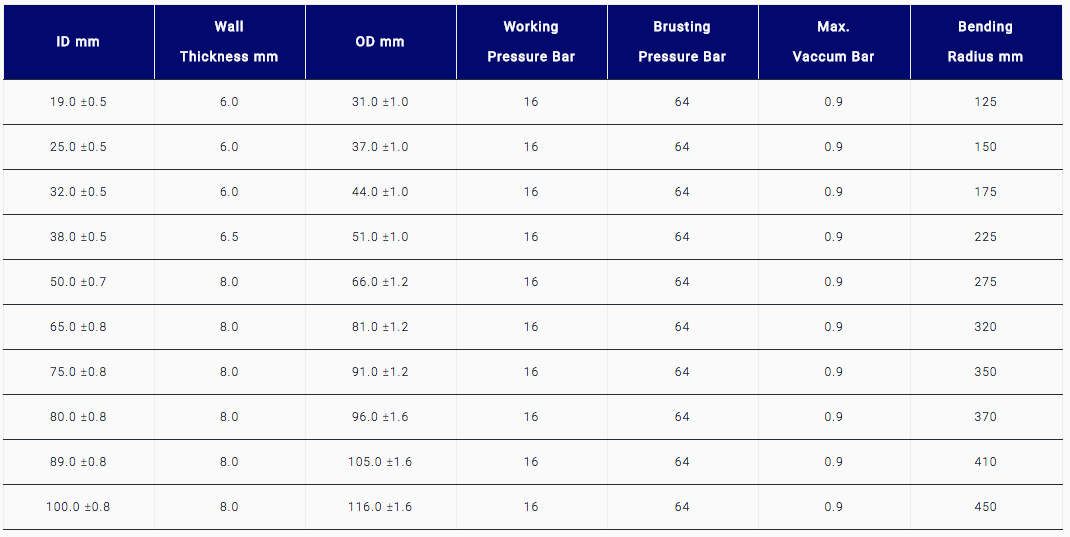

ID mm
Wall
Thickness mm
OD mm
Working
Pressure Bar
Brusting
Pressure Bar
Max.
Vaccum Bar
Bending
Radius mm
19.0 ±0.5
6.0
31.0 ±1.0
16
64
0.9
125
25.0 ±0.5
6.0
37.0 ±1.0
16
64
0.9
150
32.0 ±0.5
6.0
44.0 ±1.0
16
64
0.9
175
38.0 ±0.5
6.5
51.0 ±1.0
16
64
0.9
225
40.0 ±0.5
6.5
53.0 ±1.0
16
64
0.9
240
43.0 ±0.5
6.5
56.0 ±1.0
16
64
0.9
260
50.0 ±0.7
8.0
66.0 ±1.2
16
64
0.9
275
53.0 ±0.7
8.0
69.0 ±1.2
16
64
0.9
290
65.0 ±0.8
8.0
81.0 ±1.2
16
64
0.9
320
68.0 ±0.8
8.0
84.0 ±1.2
16
64
0.9
330
75.0 ±0.8
8.0
91.0 ±1.2
16
64
0.9
350
80.0 ±0.8
8.0
96.0 ±1.6
16
64
0.9
370
89.0 ±0.8
8.0
105.0 ±1.6
16
64
0.9
410
100.0 ±0.8
8.0
116.0 ±1.6
16
64
0.9
450
125.0 ±1.0
11.0
147.0 ±2.0
16
48
0.9
1000
150.0 ±1.0
12.0
174.0 ±2.0
16
48
0.9
1200
200.0 ±1.0
14.0
228.0 ±2.0
10
30
0.9
1600
