Ducting Hose

Lantech Solutions manufactures and supplies high-quality and durable flexible ducting hoses for commercial and industrial applications. Our hoses and ducting are broadly used in applications involving dust collection, air, fume removal, severe service, lightweight material handling, high temperature hose applications, commercial vacuum, and lawn & leaf vacuum applications.



We provide the following flexible ducting hoses:




UNI M9 / M9 Silver / M2 Viton – High Temperature Airflex



Product details:

  • Properties: Constructed of 2-ply silicone (M9)/ Viton (M2 Viton) coated glass fibre fabric supported by an embedded bronze plated steel wire helix.
  • Applications: Reliable application in low pressure ranges. Low air friction loss properties because of an additional inner layer
  • Colour: available in silver and black
  • Temperature range: Between -80°C to +310°C
  • Standard length: Available lengths 4m. If other diameters/lengths are required, please call us on 01484 423913
High Temperature Airflex

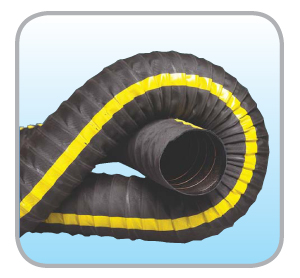

Wyreflex – Neoprene Coated Ducting – Double Ply



Product details:

  • Properties: Heavy-duty ducting hose that provides exceptional flexibility and durability that allows a tight bend radius without any kinking and trapped with twin steel wire helix
  • Applications: Suitable for conveyance and suction of air gasses and fumes, including hot and cold air, plastic granules and is useful for dust collection and other light abrasive applications
  • Colour: Black with yellow identification strip from 76 mm
  • Temperature range: Between -55°C to +130°C
  • Standard length: Available lengths 4m. If other diameters/lengths are required, please call us on 01484 423913
Neoprene Coated Ducting

Note: Wyreflex should not be used in pressurised applications




Vena HTD – Constructed of two layers of fibre glass and silicone coated with a non- visible steel wire inside the hose wall



Product details:

  • Properties: This ducting hose offers excellent standards of performance, with outstanding flexibility, high temperature and a long life span
  • Applications: Ideally suited for gas conductions at high temperatures and the extraction of engine fumes
  • Colour: it has a distinctive red inner and outer colour, combined with a non-visible inner steel wire spiral
  • Temperature range: Between -55°C to +260°C
  • Standard length: Available lengths are 4m and 6m and can be manufactured with inner diameters of 25mm and 300mm. If other diameters/lengths are required, please call us on 01484 423913

For general purpose ducting we offer PVC lightweight ducting and Polyurethane (PU) medium weight ducting.

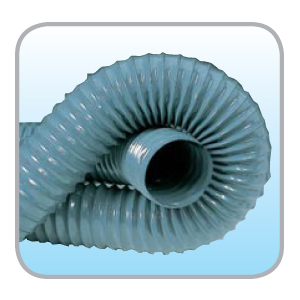

PVC ducting – Lightweight, double ply PVC



Product details:

  • Properties: The double ply PVC ducting is of high quality and very flexible. It is constructed from PVC coated polyester fabric and encapsulated with a spring wire helix.
  • Applications: The PVC ducting is easy to handle and lightweight making it ideal for a variety of low pressure air; fume and dust removal applications.
  • Colour: it is blue/grey in colour
  • Temperature range: Between 0°C to +70°C in a 20°C ambient
  • Standard length: Available lengths are 15m and 10m and can be manufactured with inner diameters of 305mm and 357mm respectively. If other diameters/lengths are required, please call us on 01484 423913.
PVC ducting – Lightweight

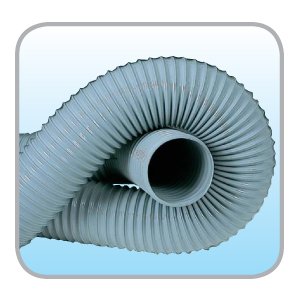

PVC Ducting – Medium weight, double ply PVC



Product details:

  • Properties: A medium weight flexible ducting that is constructed from PVC coated and fully encapsulated with spring steel wire helix.
  • Applications: The PVC ducting is easy to handle, has a smooth bore and medium weight making it ideal for a variety of low pressure air; fume and dust removal applications. It has an excellent high flex life span.
  • Colour: it is grey in colour
  • Temperature range: Between 0°C to +70°C in a 20°C ambient
  • Standard length: Available lengths are 10m and 5m and can be manufactured with inner diameters of 305mm and 357mm respectively. If other diameters/lengths are required, please call us on 01484 423913.
PVC ducting - medium weight

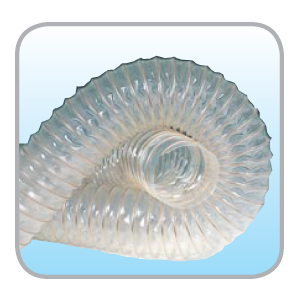

Polyurethane (PU) Ducting – Clear and lightweight



Product details:

  • Properties: Encapsulated with spring steel wire helix between two layers of crystal clear polyurethane. This ducting has excellent chemical resistance and is lightweight.
  • Applications: This ducting is ideally suited for the suction and transportation of dust, fumes and air, as well as transfer of light abrasive solids in a variety of industries.
  • Colour: it is clear in colour
  • Temperature range: Between -40°C to +100°C in a 20°C ambient
  • Standard length: A standard length of 10m is available. If other diameters/lengths are required, please call us on 01484 423913.
Polyurethane (PU) Ducting – Clear and lightweight

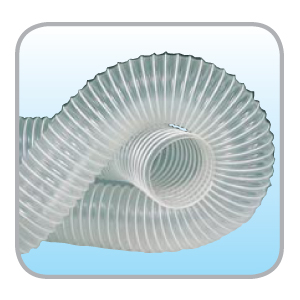

Polyurethane (PU) Ducting – Clear and Medium weight



Product details:

  • Properties: Embedded with a PVC coated spring steel wire helix between two layers of crystal clear polyurethane. This medium weight flexible ducting has excellent inner and outer abrasion resistance.
  • Applications: This ducting is ideally suited for the suction and transportation of larger granular abrasive particles, consisting of offcuts, sawdust and timber, oil and much more. It is also appropriate for the use of oil and petrol fumes.
  • Colour: it is clear in colour
  • Temperature range: Between -40°C to +100°C in a 20°C ambient
  • Standard length: A standard length of 10m is available. If other diameters/lengths are required, please call us on 01484 423913.
Polyurethane (PU) Ducting – Clear and Medium weight



Ducting used in various applications
