Description

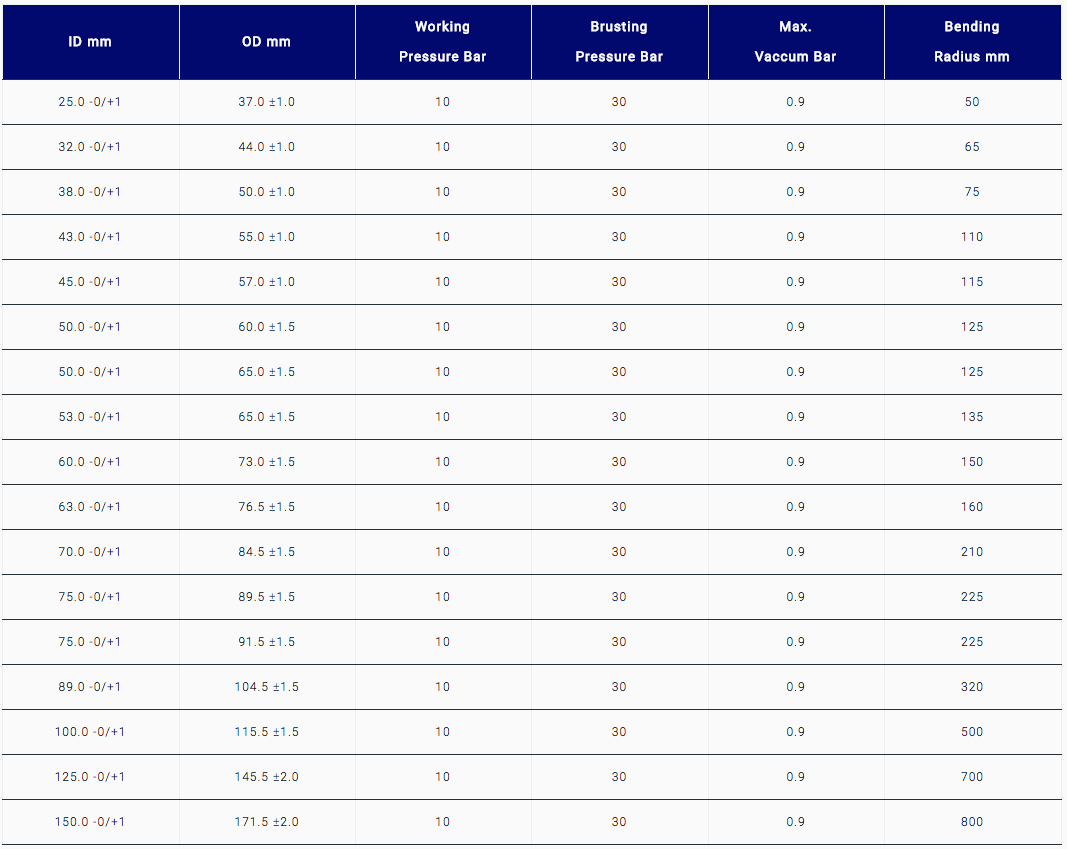

ID mm
|
OD mm
|
Working
Pressure Bar |
Brusting
Pressure Bar |
Max.
Vaccum Bar |
Bending
Radius mm |
25.0 -0/+1
|
37.0 ±1.0
|
10
|
30
|
0.9
|
50
|
32.0 -0/+1
|
44.0 ±1.0
|
10
|
30
|
0.9
|
65
|
38.0 -0/+1
|
50.0 ±1.0
|
10
|
30
|
0.9
|
75
|
43.0 -0/+1
|
55.0 ±1.0
|
10
|
30
|
0.9
|
110
|
45.0 -0/+1
|
57.0 ±1.0
|
10
|
30
|
0.9
|
115
|
50.0 -0/+1
|
60.0 ±1.5
|
10
|
30
|
0.9
|
125
|
50.0 -0/+1
|
65.0 ±1.5
|
10
|
30
|
0.9
|
125
|
53.0 -0/+1
|
65.0 ±1.5
|
10
|
30
|
0.9
|
135
|
60.0 -0/+1
|
73.0 ±1.5
|
10
|
30
|
0.9
|
150
|
63.0 -0/+1
|
76.5 ±1.5
|
10
|
30
|
0.9
|
160
|
70.0 -0/+1
|
84.5 ±1.5
|
10
|
30
|
0.9
|
210
|
75.0 -0/+1
|
89.5 ±1.5
|
10
|
30
|
0.9
|
225
|
75.0 -0/+1
|
91.5 ±1.5
|
10
|
30
|
0.9
|
225
|
89.0 -0/+1
|
104.5 ±1.5
|
10
|
30
|
0.9
|
320
|
100.0 -0/+1
|
115.5 ±1.5
|
10
|
30
|
0.9
|
500
|
125.0 -0/+1
|
145.5 ±2.0
|
10
|
30
|
0.9
|
700
|
150.0 -0/+1
|
171.5 ±2.0
|
10
|
30
|
0.9
|
800
|
